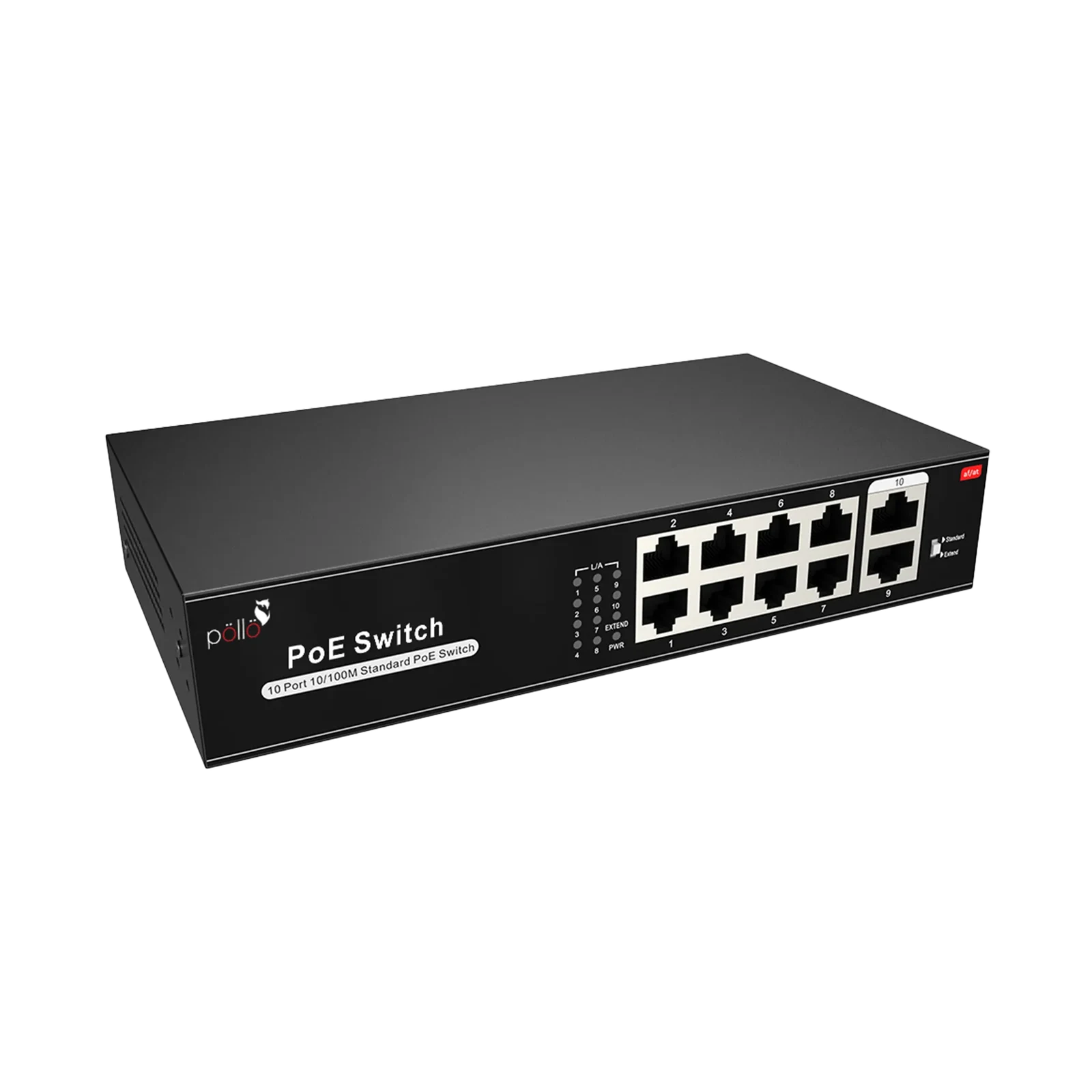

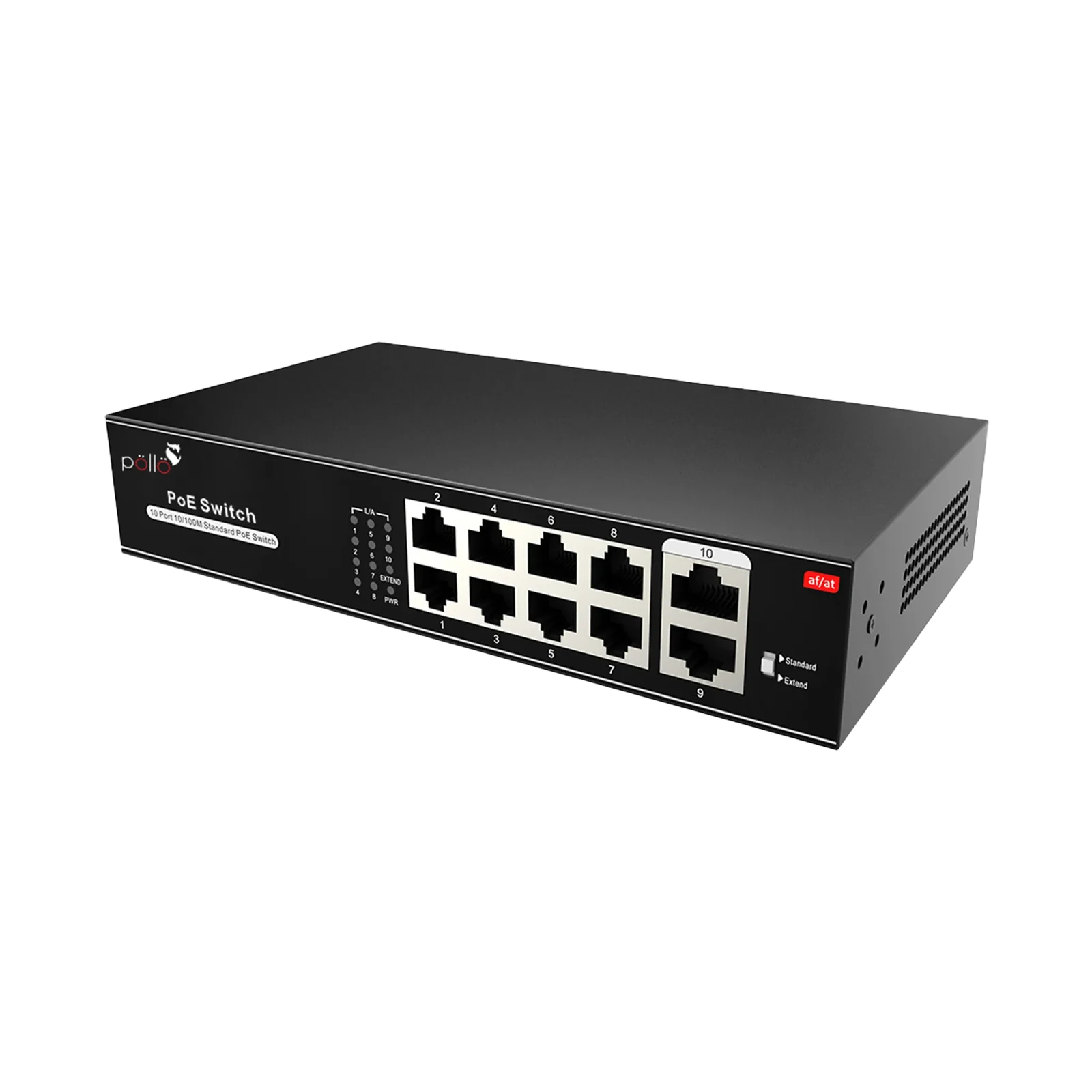

10-Port Megabit PoE Network Switch

• 8 × 10/100Base-TX PoE ports for data and power delivery
• 2 × 10/100Base-TX uplink RJ45 ports for network connection
• All ports support auto-detection, full/half-duplex, MDI/MDI-X
• Built-in Extender + CCTV mode functional switch
• Extended transmission up to 250 meters on Cat5 or higher cable
• Compliant with IEEE 802.3 / 802.3u / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 2 Gbps non-blocking switching capacity
• 1.488 Mpps forwarding rate 64-byte packets
• 1K MAC address table with 768 KB buffer memory
• Supports IEEE 802.3af/at PoE on ports 1–8
• Maximum 30 W per PoE port
• Total PoE power budget up to 100 W

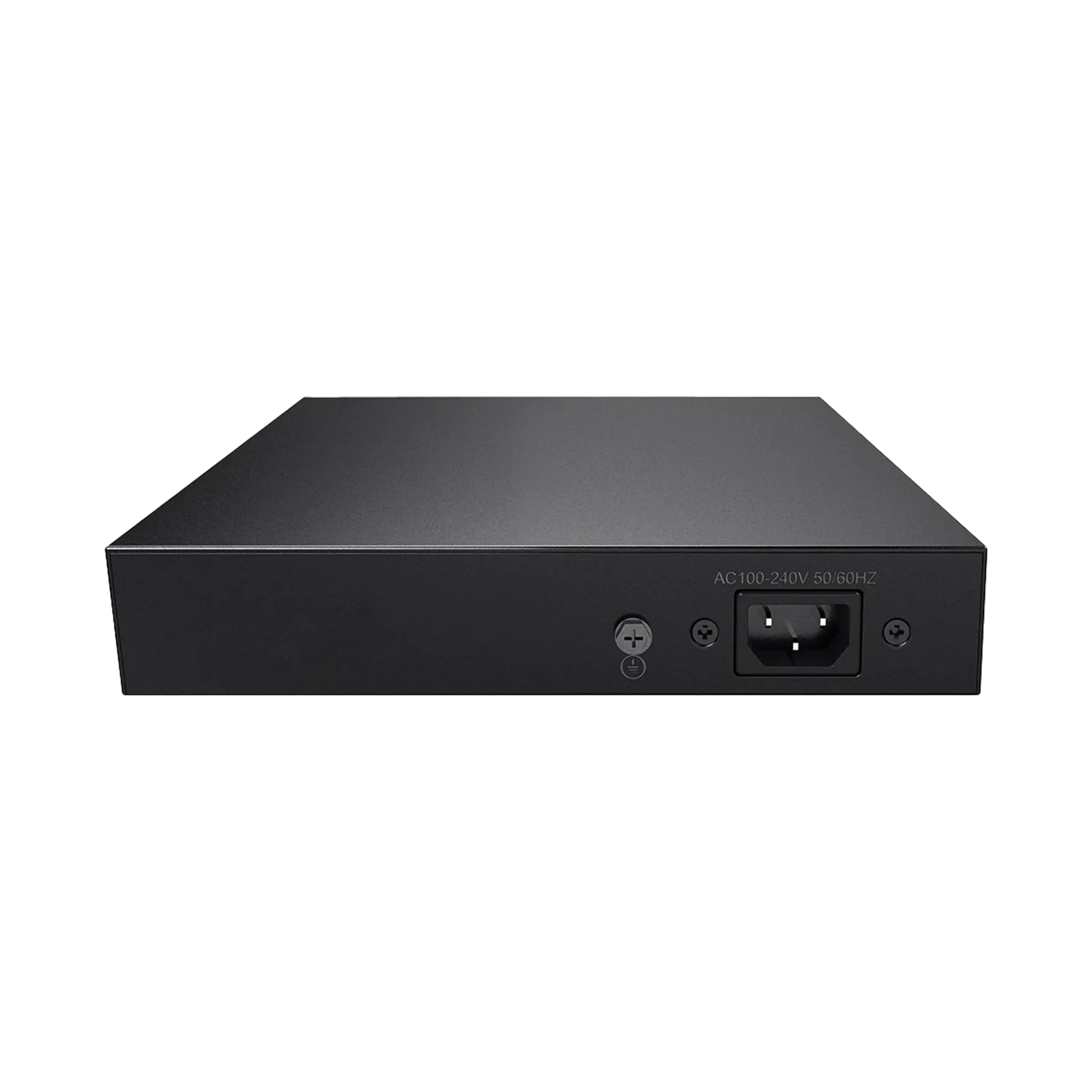

• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption: <5 W standby, <100 W full load
• LED indicators for power, link, PoE, and extender status
• Operating temperature range -20°C to +55°C
• Desktop and wall-mount installation options
• 4 KV lightning protection, IP30 protection level
• Certified with CCC, CE, FCC, RoHS
