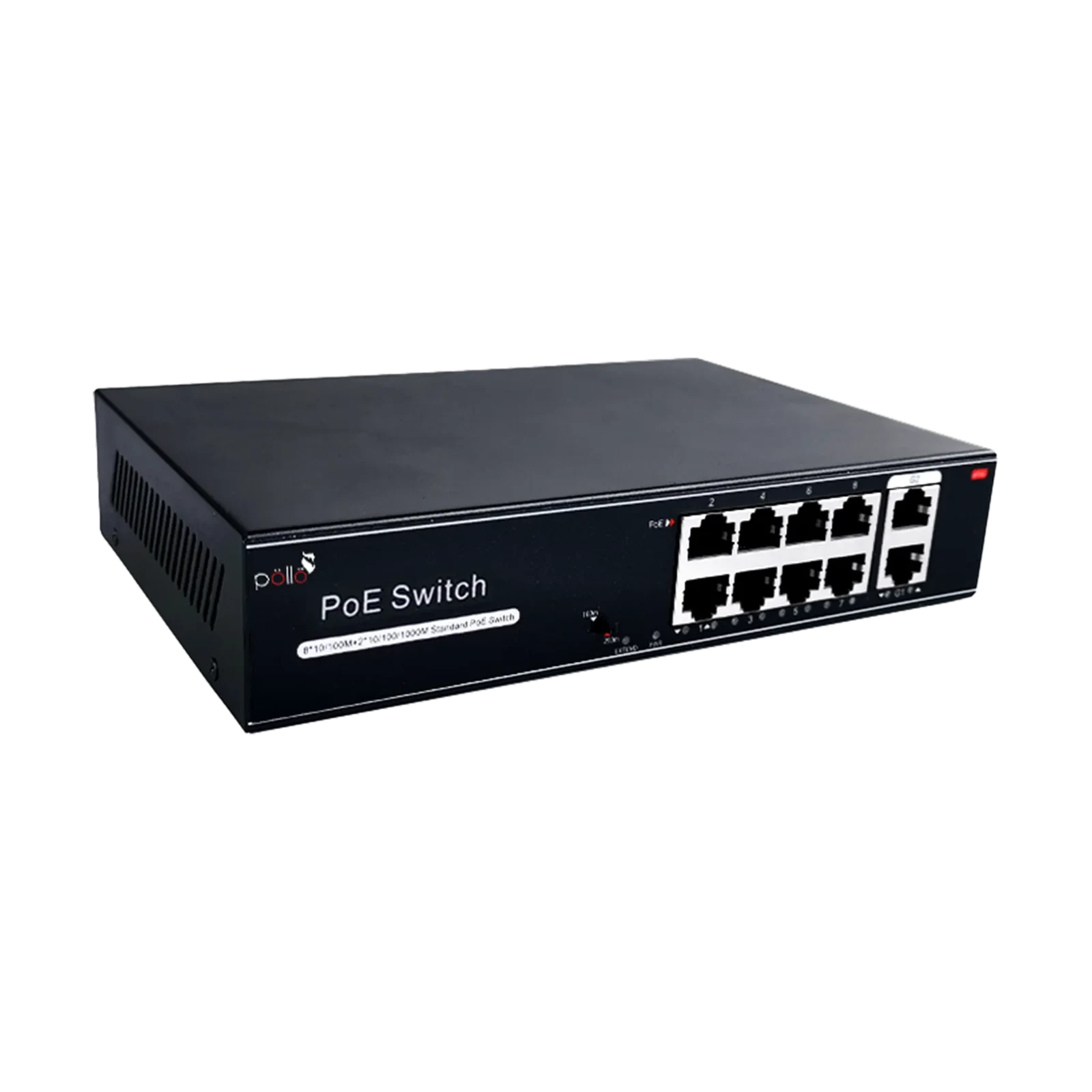

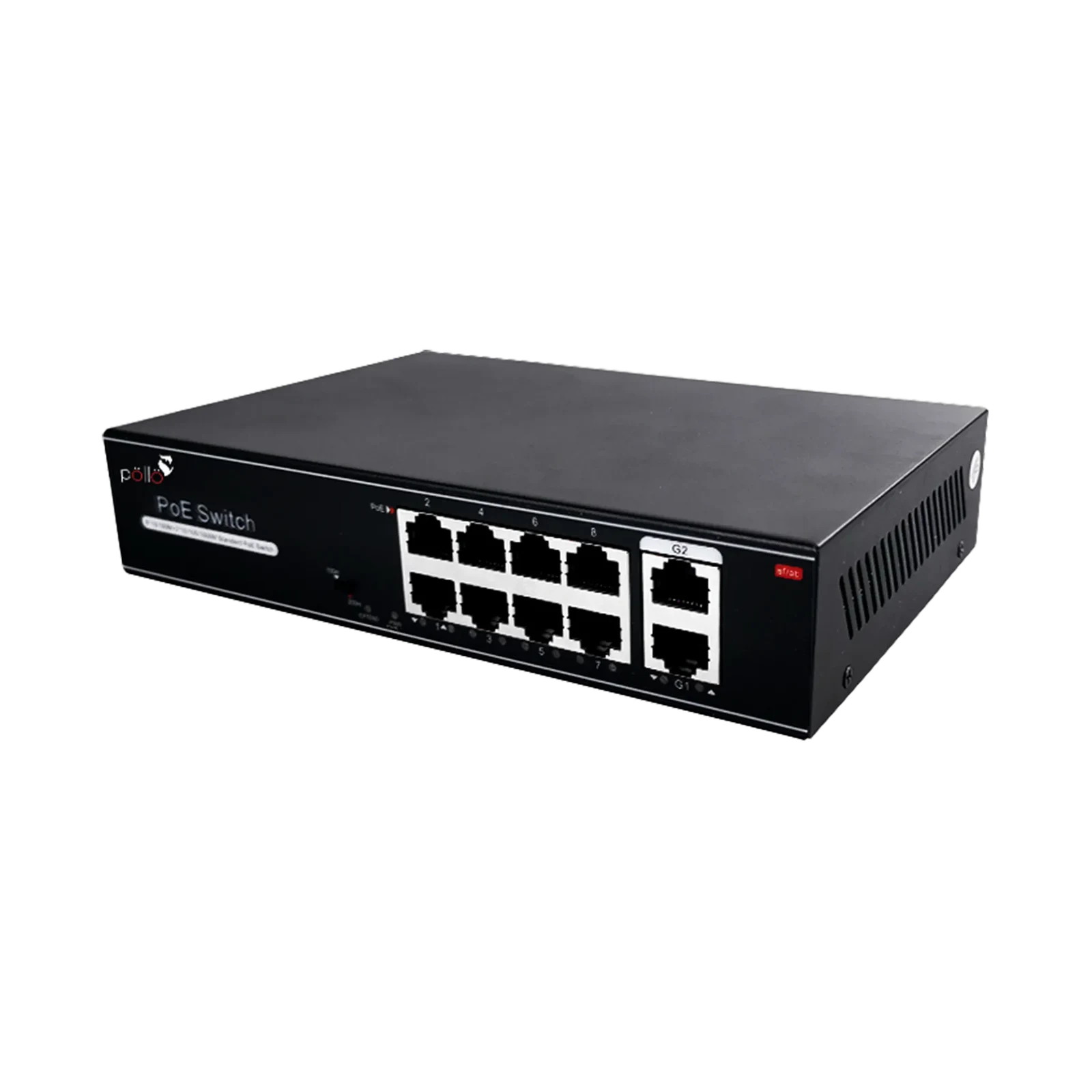

10-Port Megabit PoE Network Switch with Gigabit Uplink

• 8 × 10/100Base-TX PoE ports for data and power
• 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
• Ports 1–8 support 10/100 Mbps, ports 9–10 support 10/100/1000 Mbps
• Full/half-duplex operation with MDI/MDI-X auto-adaptation
• Built-in Extender mode for long-distance transmission
• Extended transmission up to 250 m on Cat5 UTP
• Complies with IEEE 802.3 / 802.3u / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 11.8 Gbps non-blocking switching capacity
• 4.17 Mpps forwarding rate @64-byte packets
• 3K MAC address table with 2 MB buffer memory
• IEEE 802.3af/at PoE supported on ports 1–8
• Maximum 30 W per PoE port
• Total PoE power budget up to 120 W

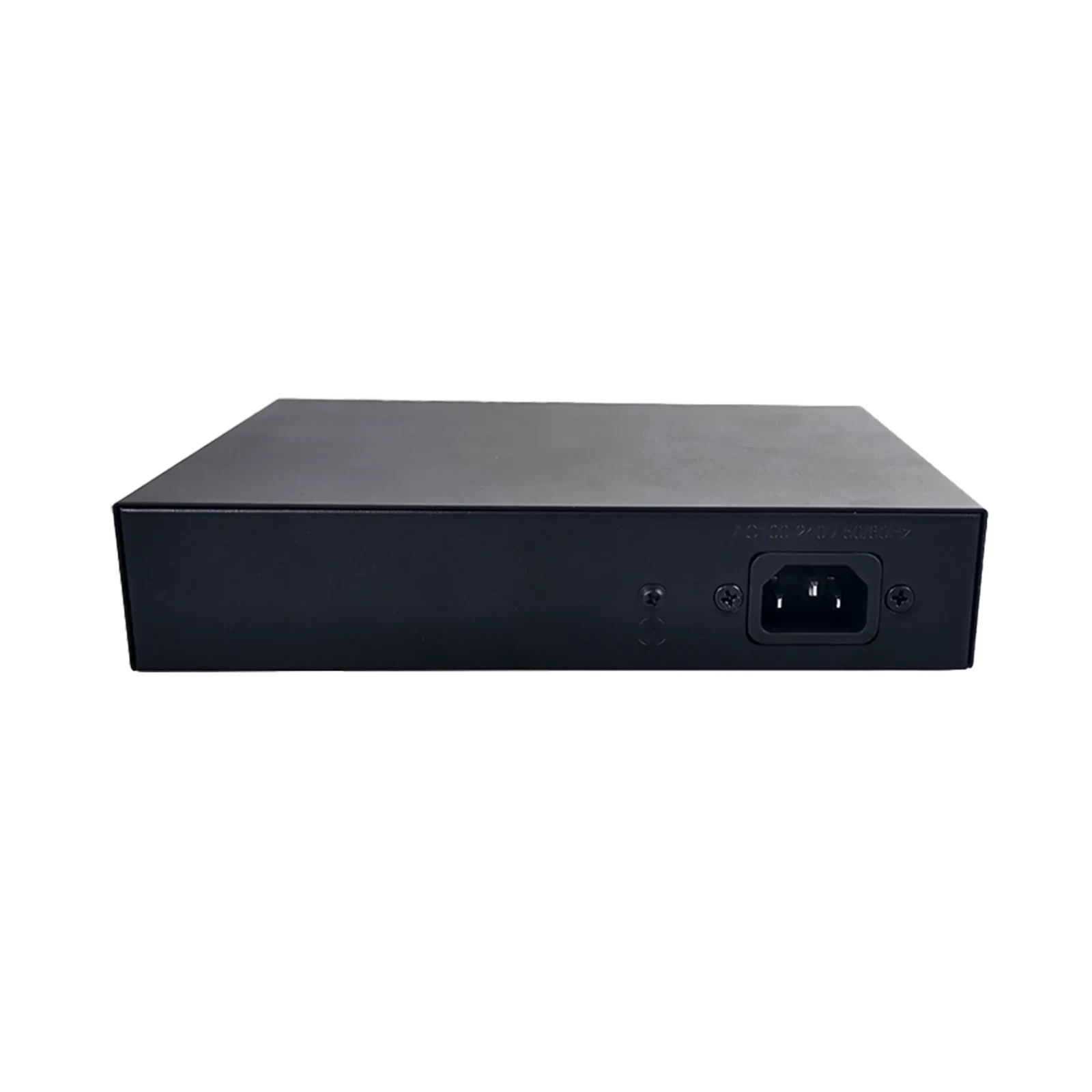

• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption: <5 W standby, <120 W full load
• LED indicators for power, link, PoE, and extender status
• Operating temperature range -20°C to +55°C
• Desktop and wall-mount installation options
• 4 KV lightning protection, IP30 protection level
• Certified: CCC, CE, FCC, RoHS
