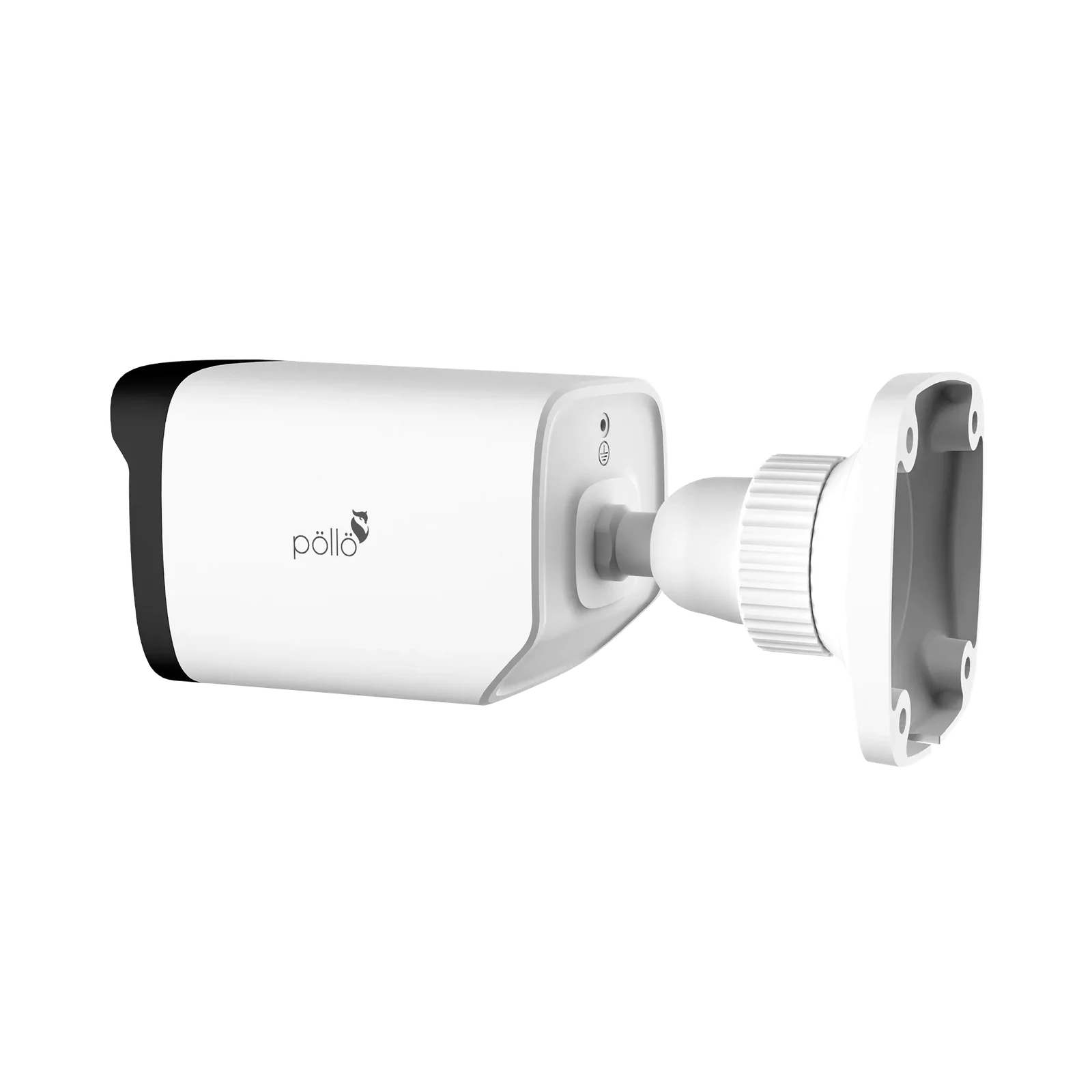

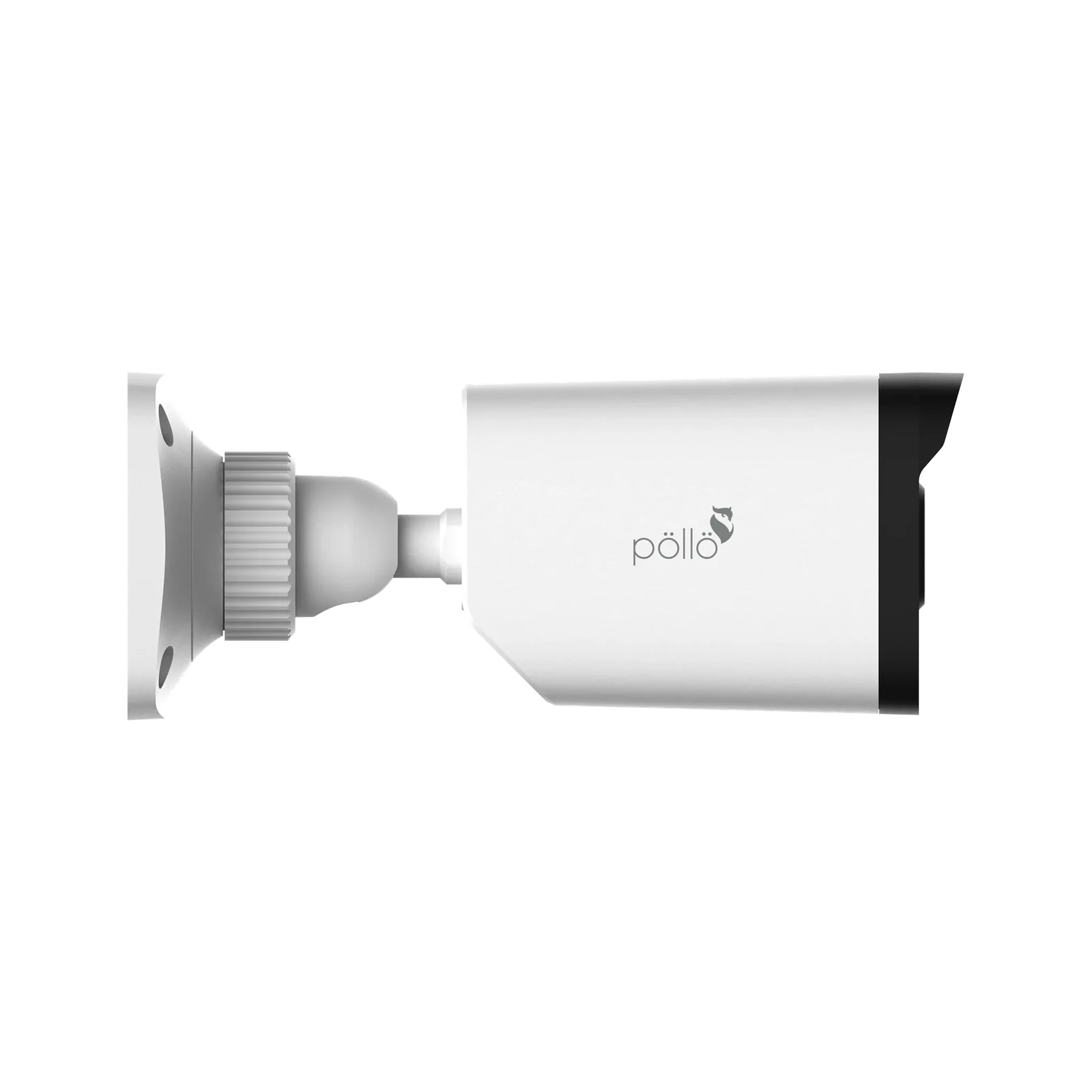

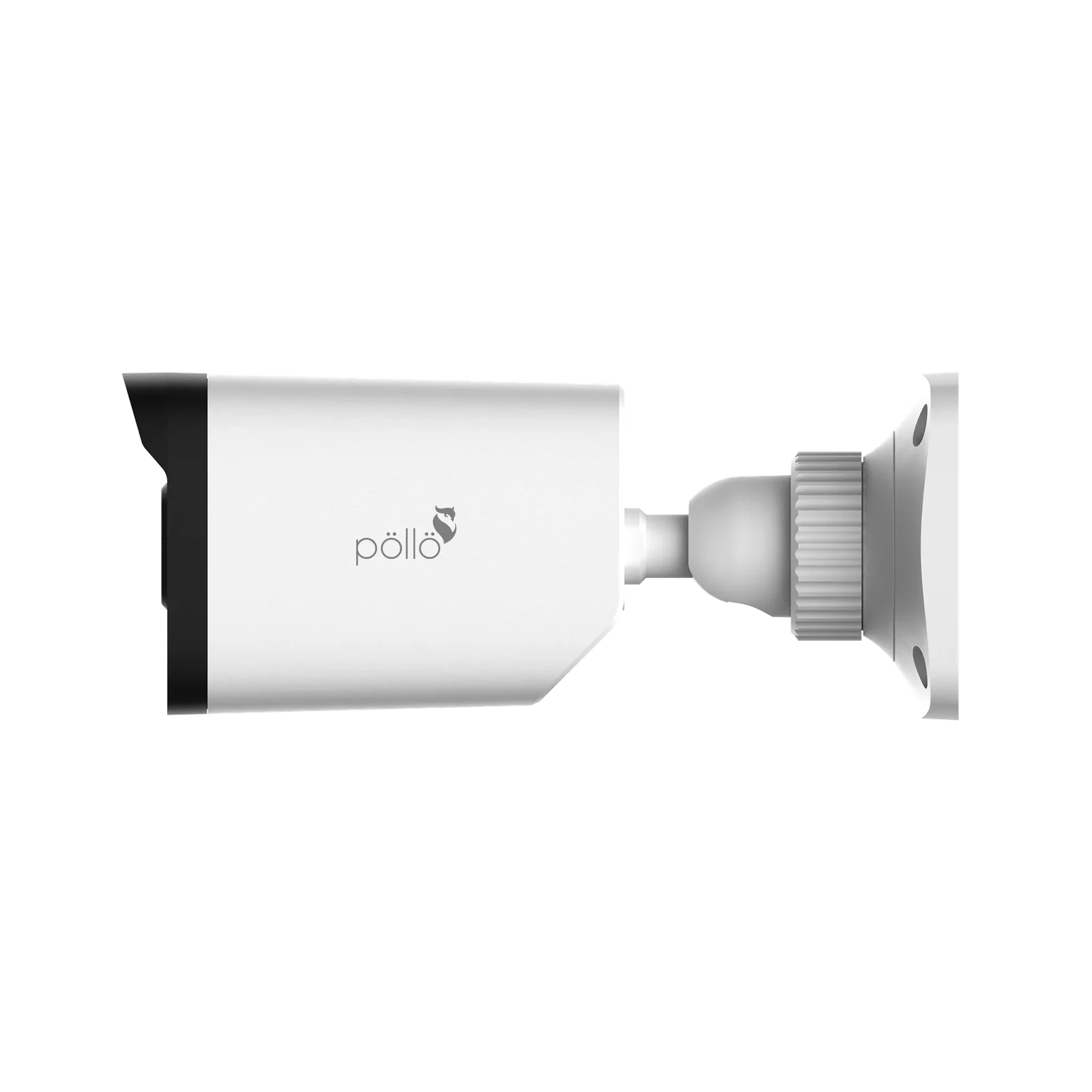

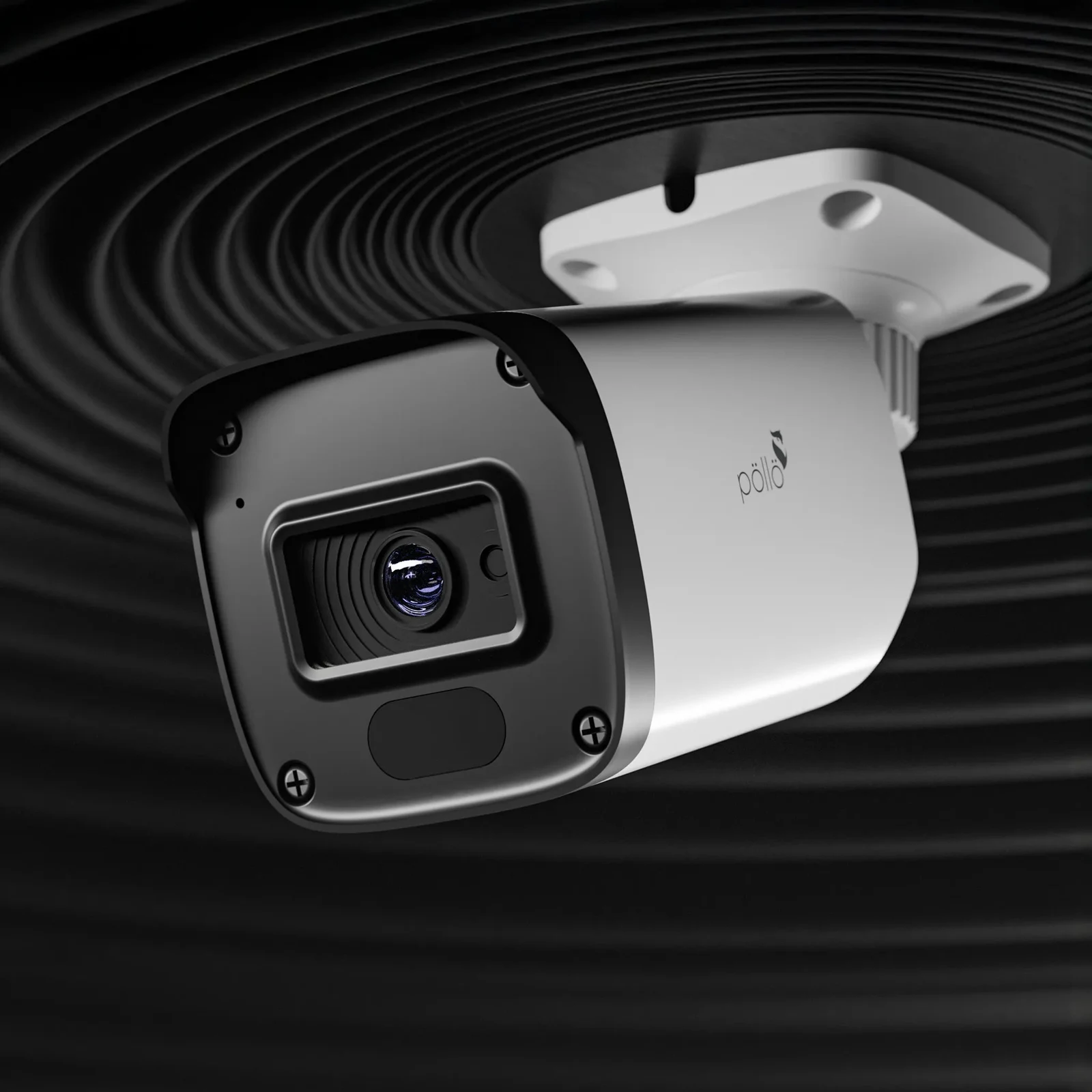

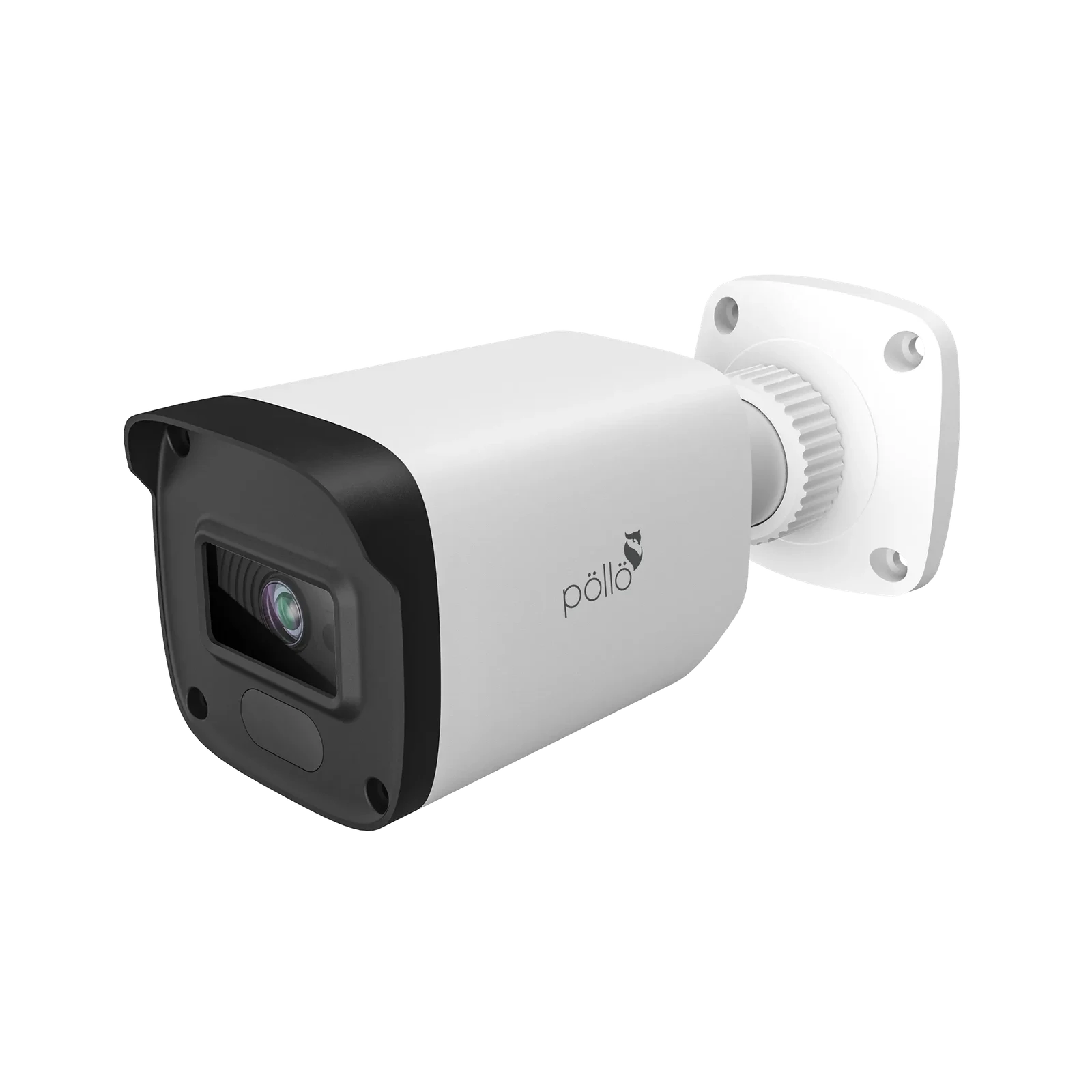

2 Megapixel AI Network Bullet Camera

Name: 2 Megapixel AI Network Bullet Camera
Brand: Pollo

1/2.8” CMOS Image Sensor · 1920 × 1080 Pixels Full HD Resolution · 0.005 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.8” CMOS Image Sensor
• 1920 × 1080 Pixels Full HD Resolution
• 0.005 Lux Min. Illumination for Day Time Color View
• 30-meter IR Night View Range @ 0 Lux
• Face Detection and Face Capture
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes, IEEE802.3af
ROI	Each ROI to be configured separately
Lens	3.6 mm@F1.6, horizontal FoV: 89°; vertical FoV: 57.8°; diagonal FoV:96.8°
Audio	1CH audio input
Defog	Yes
Focus	Fixed
Model	PLC-422M-AI-IR3/PM
Reset	Yes
Network	RJ 45
Storage	Network remote storage; micro-SD card storage
Bit Rate	64 Kbps ~ 6 Mbps
Iris Type	Fixed Iris
Digital NR	3D DNR
Image Size	1920 × 1080
Lens Mount	M12
Resolution	1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
Sub Stream	60Hz:720P/D1/CIF/480×240 (1~30fps);
IR Distance	20 ~ 30 m
Main Stream	60Hz:1080P/720P (1 ~ 30fps); 50Hz:1080P / 720P (1 ~ 25fps)
Smart Alarm	Motion detection, SD card error, SD card full
Image Sensor	1 / 2.8" CMOS
Installation	Ceiling mounting; Wall mounting
Power Supply	DC12V/PoE
Video Output	No
Weight (net)	Approx. 0.42KG
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,
Dimensions (mm)	167.5 x 74 5 x 74 5
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
General Function	Watermark, IP address filtering, video mask, heartbeat, password
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE,
Min. Illumination	0.005 lux@F1.6, AGC ON; 0 lux with IR 0.0028 lux@F1.2, AGC ON; 0 lux with
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream
Power Consumption	< 6.5W
Remote Monitoring	Web browsing, CMS remote control
Electronic Shutter	1 s ~ 1 / 100000 s
Ingress Protection	IP 67
Interface Protocol	ONVIF
Wide Dynamic Range	120dB
Operating Environment	- 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing)
