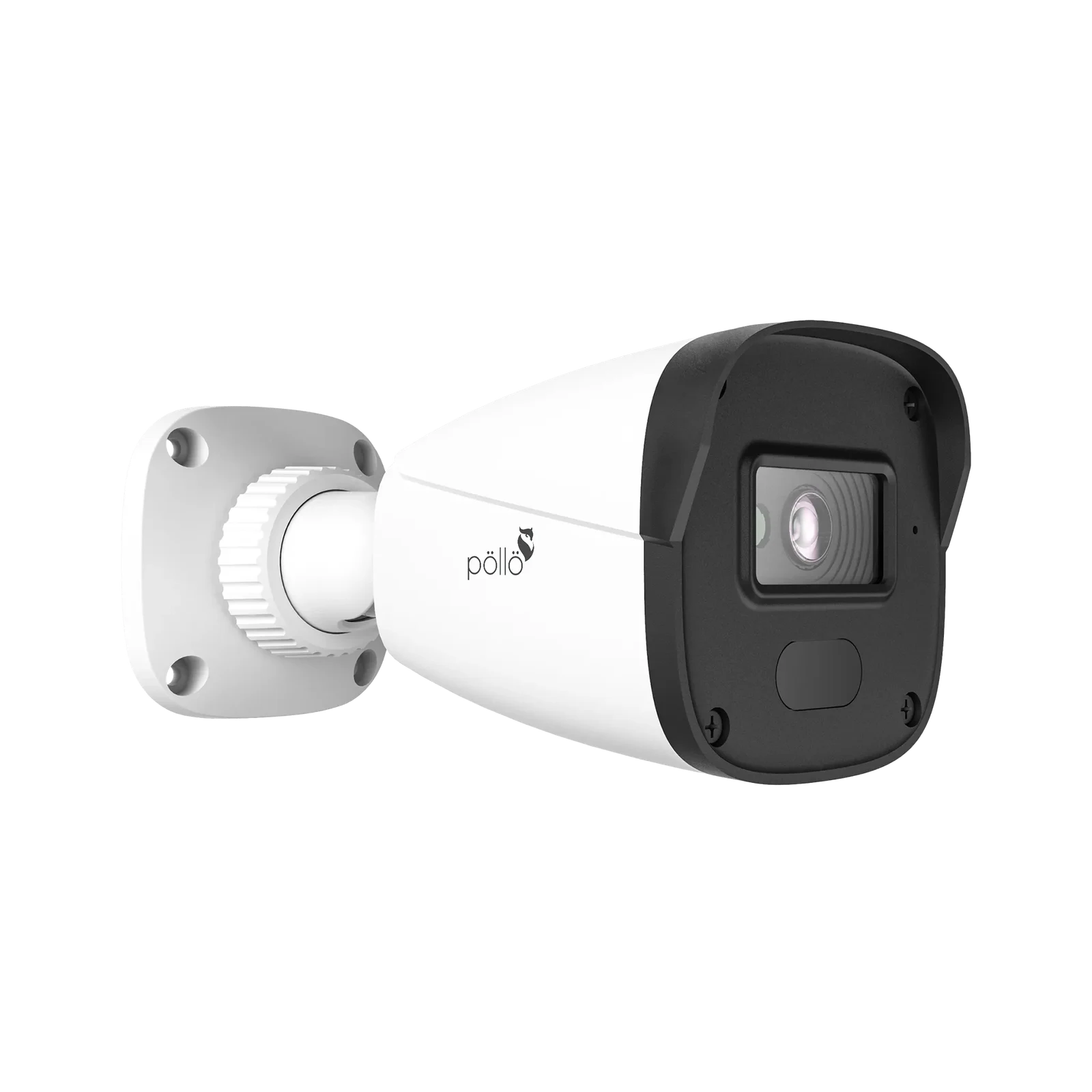

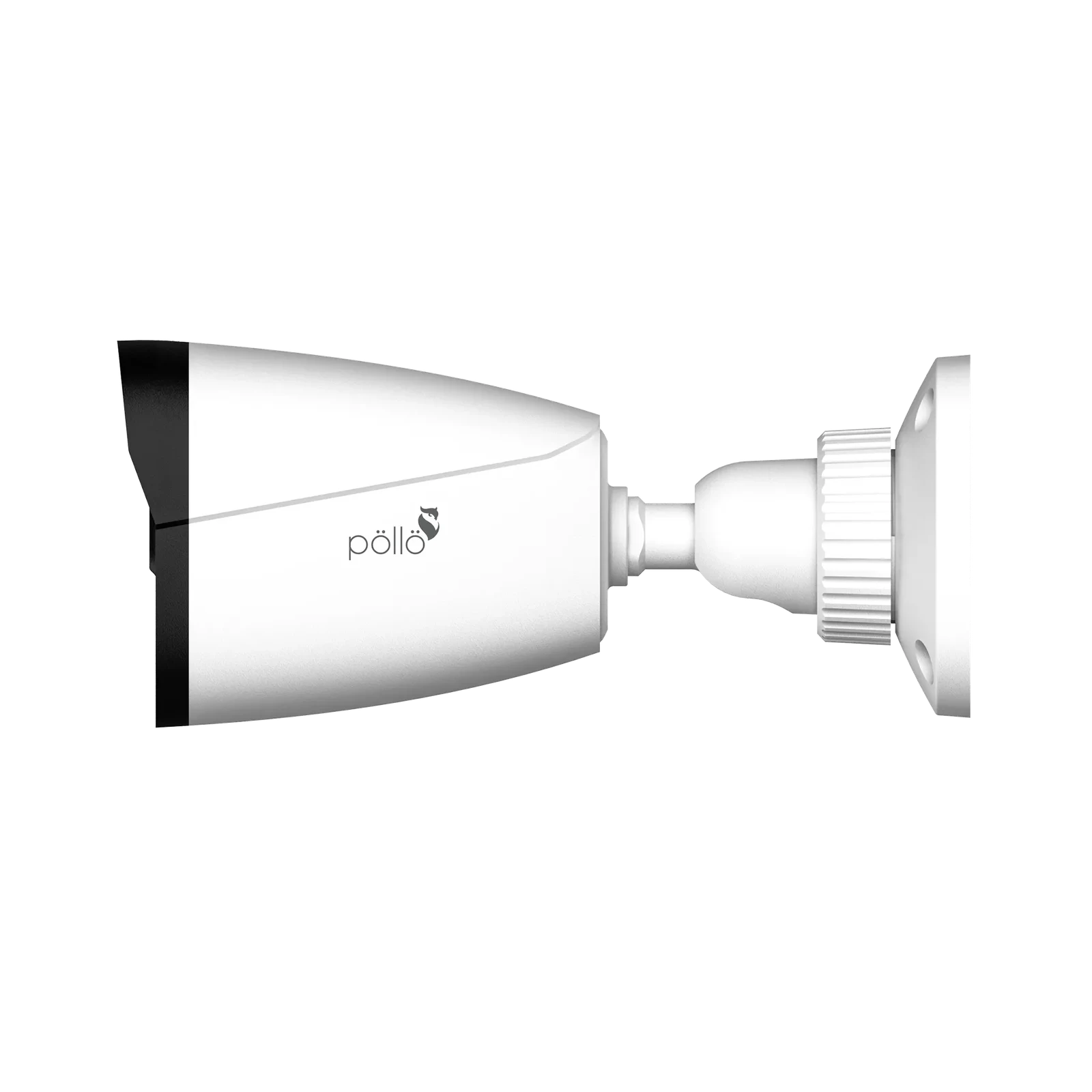

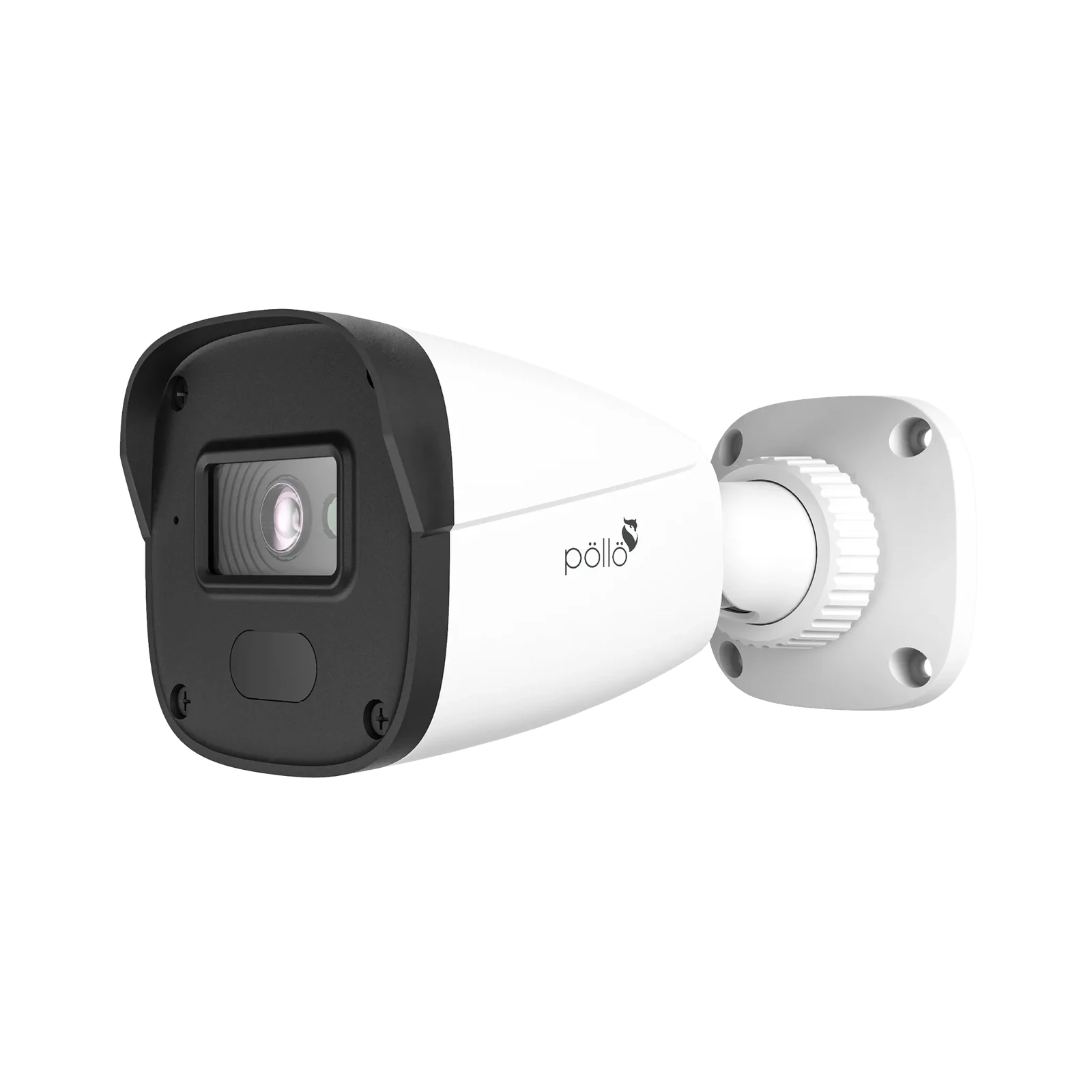

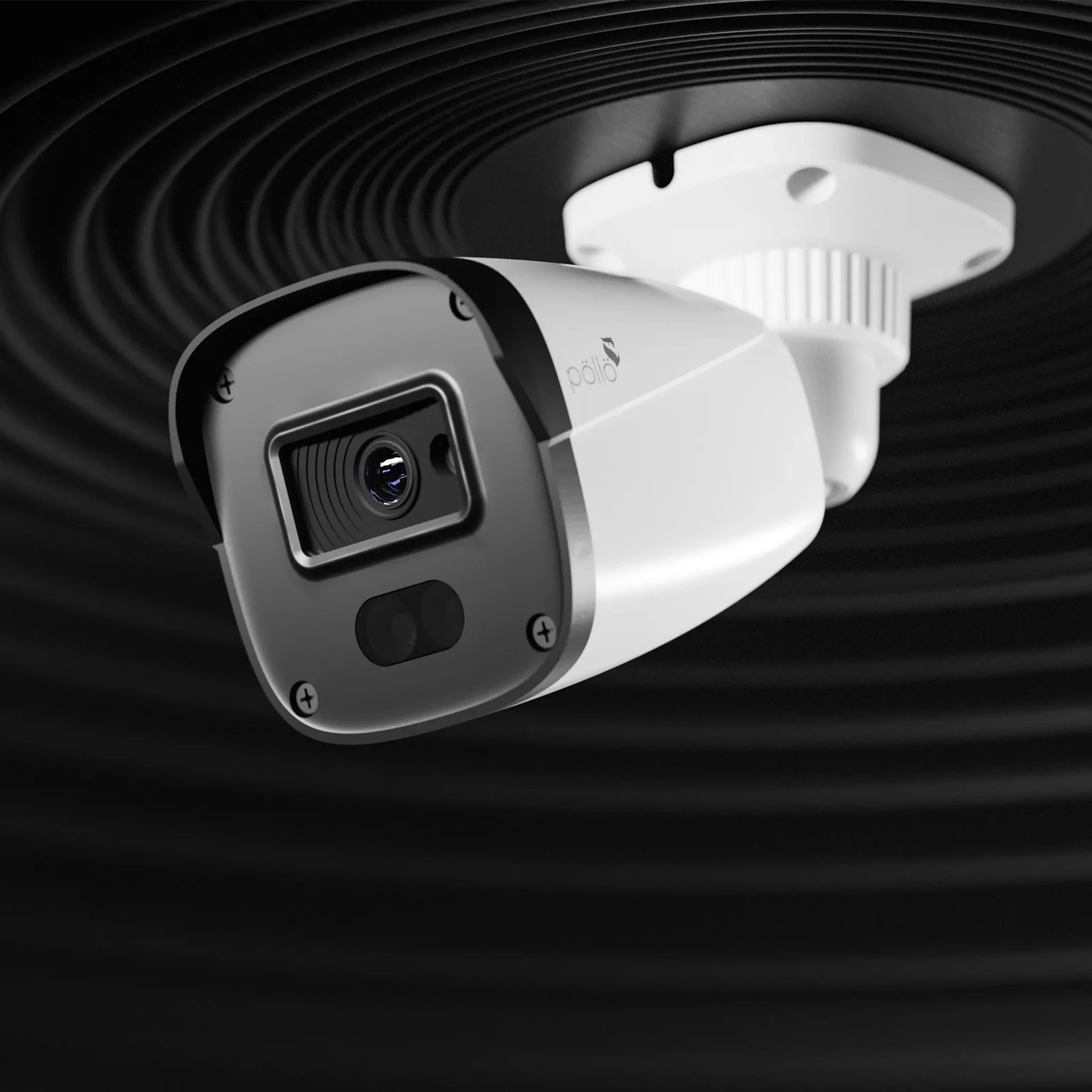

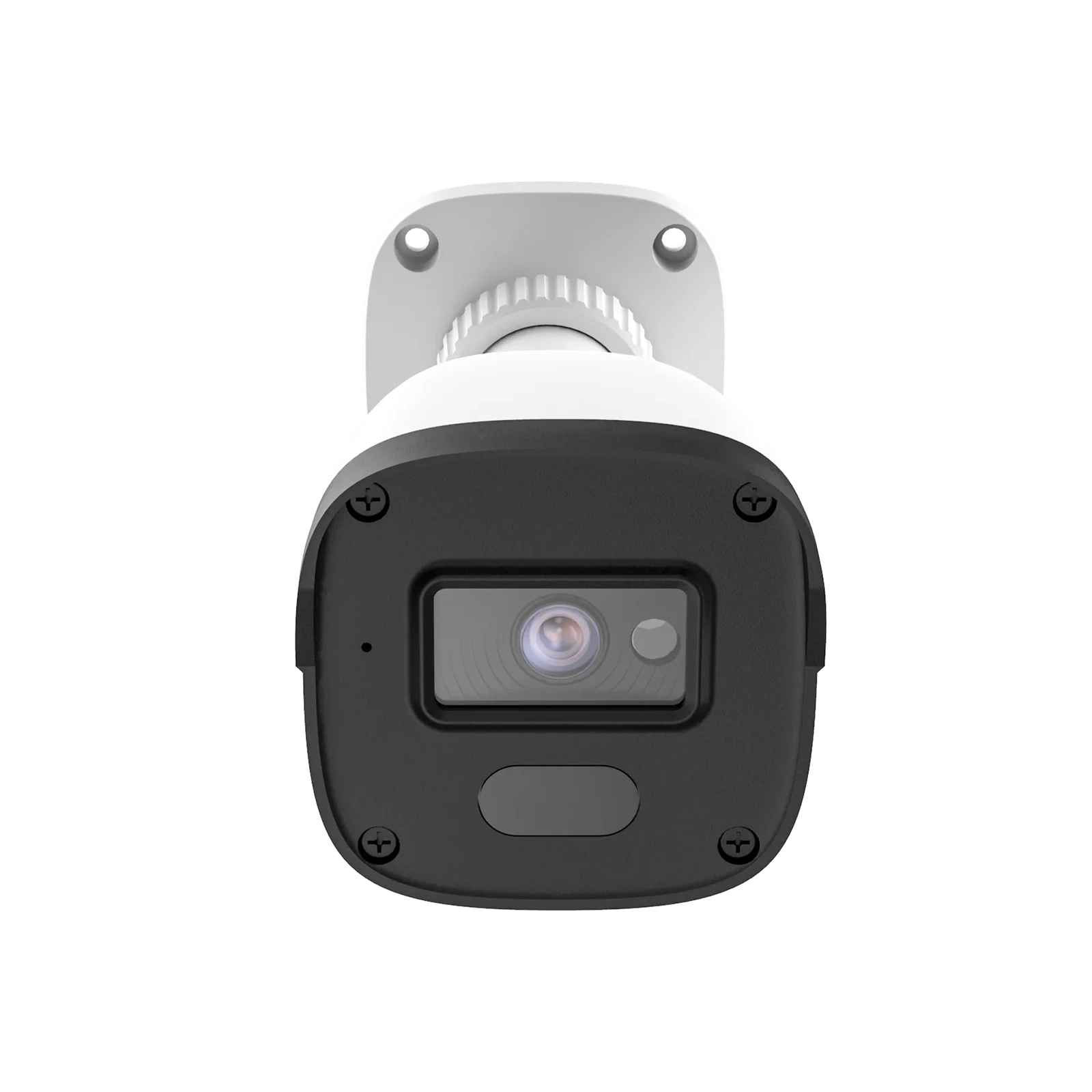

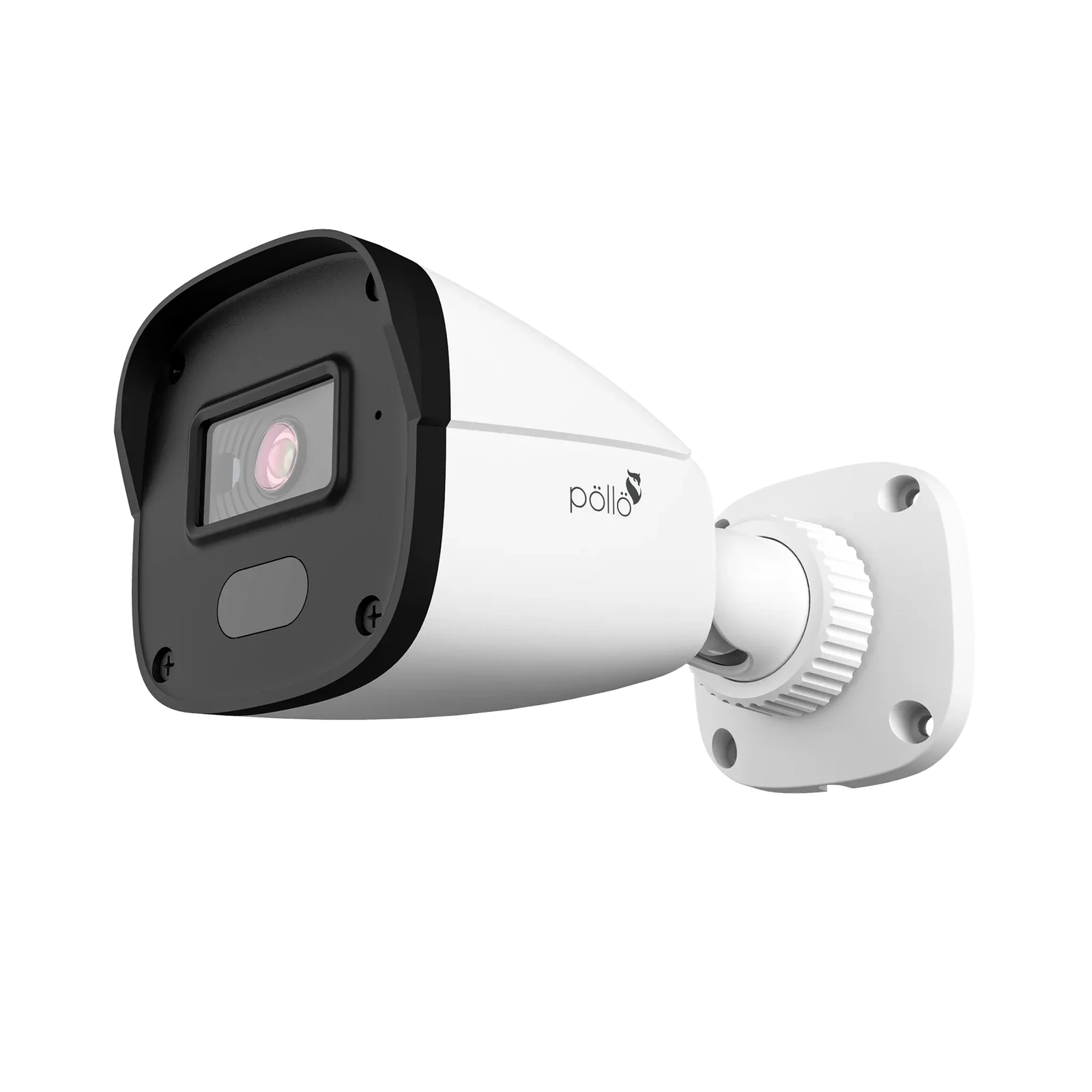

2 Megapixel Network Bullet Camera

Name: 2 Megapixel Network Bullet Camera
Brand: Pollo

1/3” CMOS Image Sensor · 1920 × 1080 Pixels Full HD Resolution · 0.012 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/3” CMOS Image Sensor
• 1920 × 1080 Pixels Full HD Resolution
• 0.012 Lux Min. Illumination for Day Time Color View
• 30-meter IR Night View Range @ 0 Lux
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes, IEEE802.3af
ROI	Each ROI to be configured separately
Lens	3.6 mm @F2.2, 102 H. FoV: 86.1°; V. FoV:46°; D. FoV:104°
Audio	Yes
Defog	Yes
Focus	Fixed
Model	PLC-422P-IR3/PM
Reset	No
Network	RJ45
Storage	Network remote storage
Bit Rate	64 Kbps ~ 4 Mbps
Iris Type	Fixed Iris
Digital NR	3D DNR
Image Size	1920×1080
Lens Mount	M12
Resolution	1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF
Sub Stream	60Hz : D1/CIF(1~30fps); 50Hz: D1/CIF/(1~25fps)
IR Distance	20 ~ 30m
Main Stream	60Hz : 1080P/720P(1~30fps); 50Hz : 1080P/720P(1~25fps)
Smart Alarm	Motion detection
Image Sensor	1 / 2.8"CMOS
Installation	Ceiling mounting; Wall mounting
Power Supply	DC12V/PoE
Video Output	No
Weight (net)	Approx. 0.24KG
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic,
Dimensions (mm)	162.1 × 74.8 × 73.8
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
General Function	Watermark, IP address filtering, video mask, heartbeat, illegal login
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP,
Min. Illumination	0.0126lux @F1.2, AGC ON; 0 lux with IR
Online Connection	Support simultaneous monitoring for up to 3 users;
Power Consumption	< 5W
Remote Monitoring	Web browsing, CMS remote control
Video Compression	H.265 / H.264
Electronic Shutter	1 s ~ 1 / 100000 s
Ingress Protection	IP67
Interface Protocol	ONVIF
Wide Dynamic Range	Digital WDR
Intelligent Analytics	Region intrusion detection, video blur detection, scene change detection,
Operating Environment	- 20 °C ~ 55 °C (-4°F~131°F) Humidity: less than 95 % (non-condensing)
H.265 Compression Standard	Main Profile@Leve4.1 High Tier
