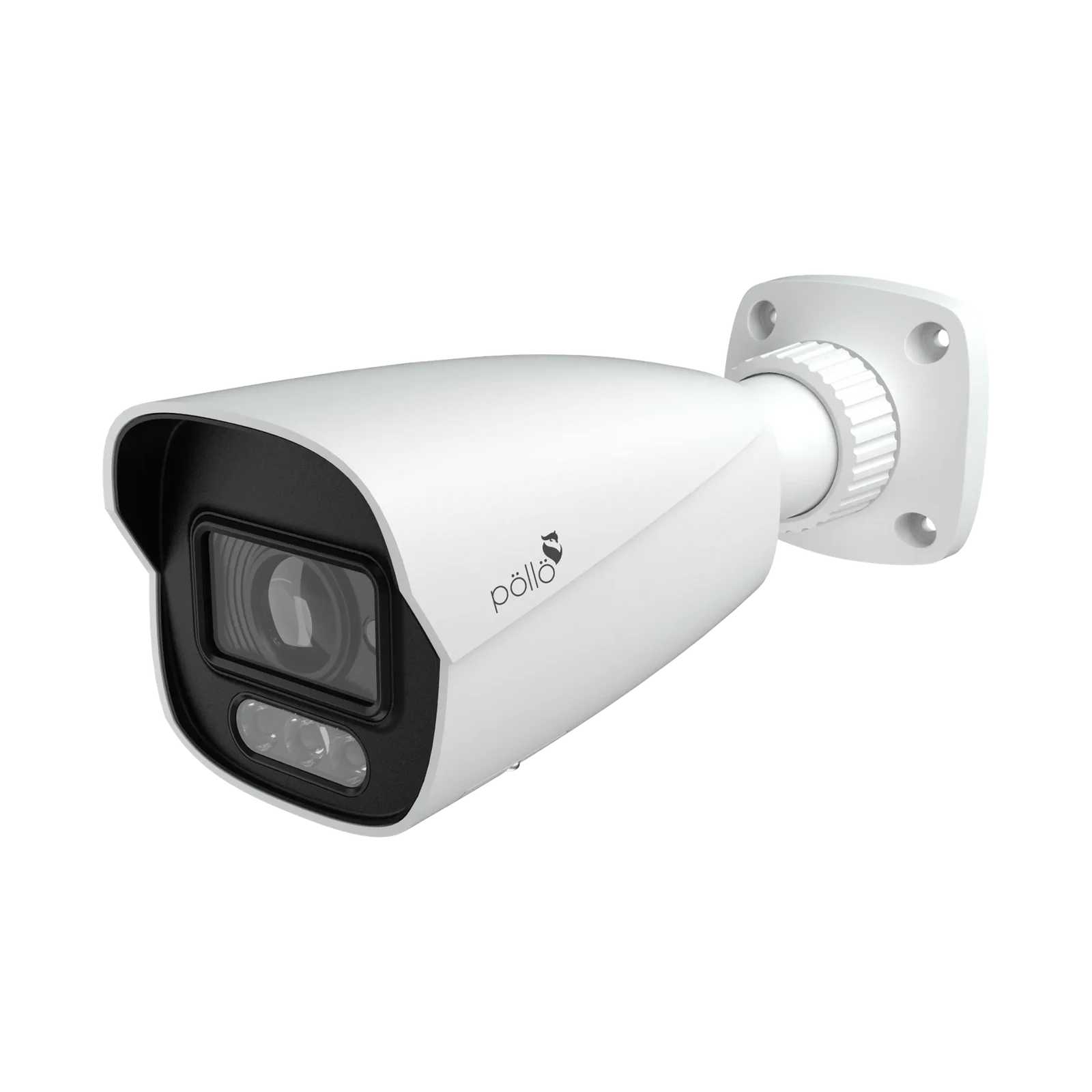

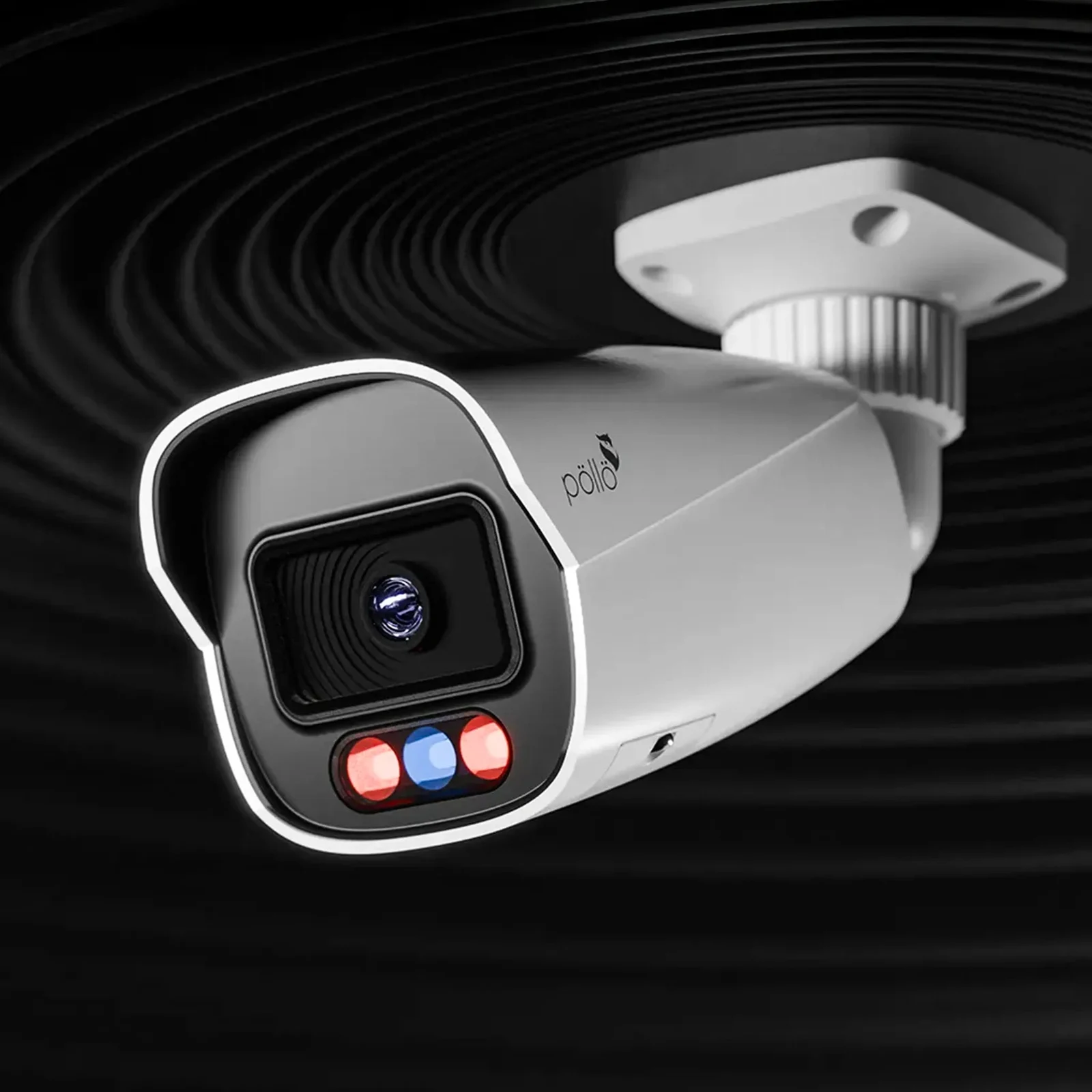

4 Megapixel Active Deterrence Network Bullet Camera

Name: 4 Megapixel Active Deterrence Network Bullet Camera
Brand: Pollo

1/3” CMOS Image Sensor · 2688 × 1520 Pixels (2K) Resolution · 0.03 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/3” CMOS Image Sensor
• 2688 × 1520 Pixels (2K) Resolution
• 0.03 Lux Min. Illumination for Day Time Color View
• 50-meter Dual Light Night View Range @ 0 Lux
• Face Detection and Face Capture
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP66 Water & Dust Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes , IEEE802.3af
ROI	Each ROI to be configured separately
Lens	2.8 mm@F1.6, H.FoV:96°; V.FoV:54.5°; D.FoV:113°;
Audio	1CH audio input; 1CH audio output; 1CH built-in speaker; 1CH built-in
Defog	Yes
Focus	Fixed
Reset	Yes
Weight	( net ) Approx. 0.68KG
Network	RJ 45 10M/100M self-adaptive Ethernet port
Storage	Conditions - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Bit Rate	64 Kbps ~ 8 Mbps
Iris Type	Fixed Iris
Digital NR	3D DNR
Dimensions	( mm ) 217.8 × 80.5 × 80.3
Image Size	2688 × 1520
Lens Mount	M12
Resolution	4MP(2688×1520)/(2592×1520), 2K (2560×1440 ), 3MP (2304×1296),1080P
Sub Stream	720P/D1/VGA/640×360/CIF/480×240 ( 60Hz: 1 ~ 30fps; 50Hz: 1~25fps )
Smart Alarm	Motion detection, sensor alarm, SD card error, SD card full, IP address conflict
Image Sensor	1 / 3" CMOS
Installation	Ceiling mounting; Wall mounting
Power Supply	DC12V/PoE
Video Output	No
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, image
Angle Adjustment	Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
General Function	Watermark, IP address filtering, video mask, heartbeat, password protection,
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,
Min. Illumination	0.03lux@F1.6,AGC ON; 0 lux with IR
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream
Power Consumption	< 12W
Remote Monitoring	Web Browser/Pollo PVMS Plus /NVR/mobile APP
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ /
Electronic Shutter	Auto/manual mode; manual mode: 1 /3 s ~ 1 / 100000 s
Ingress Protection	IP66
Interface Protocol	ONVIF
Wide Dynamic Range	120dB
