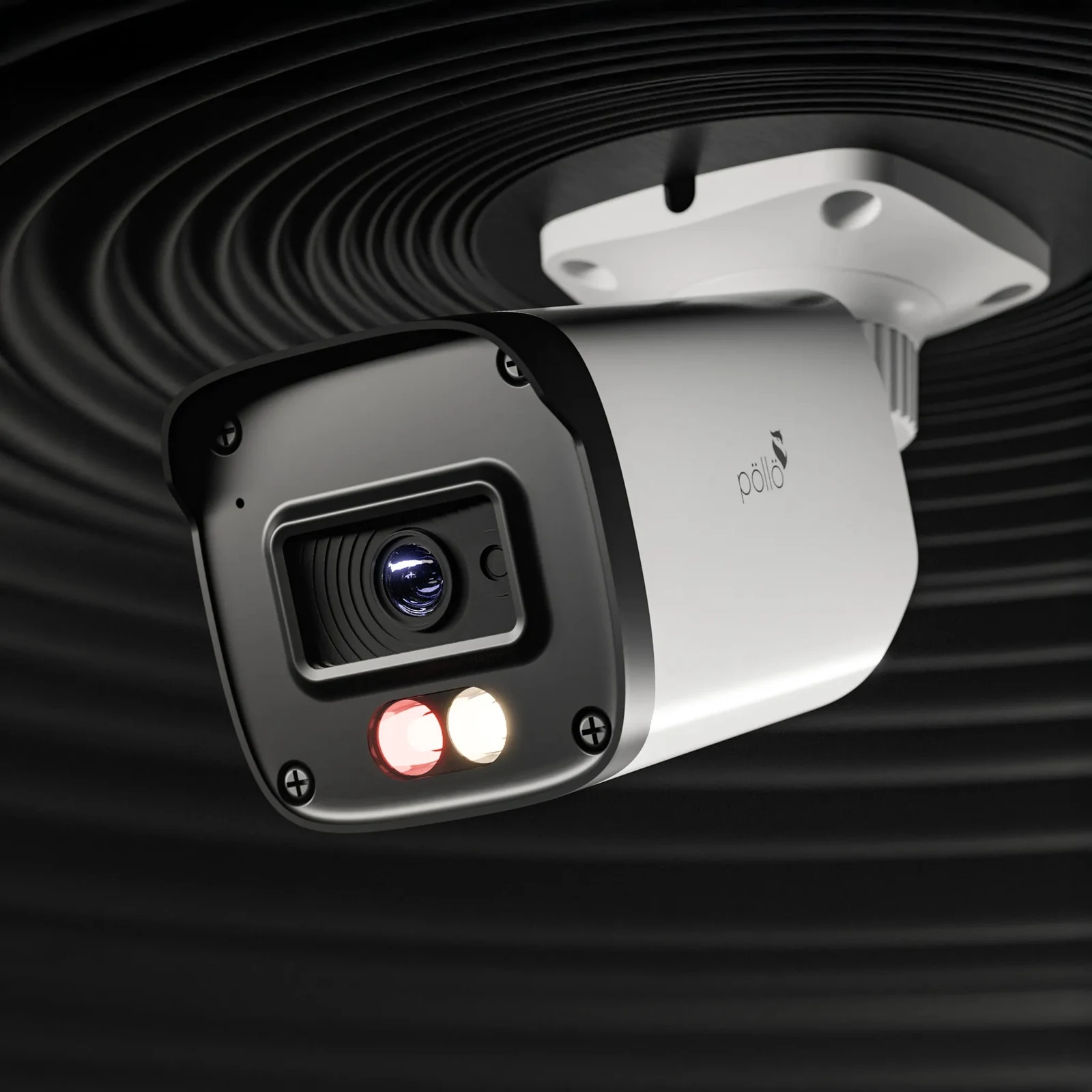

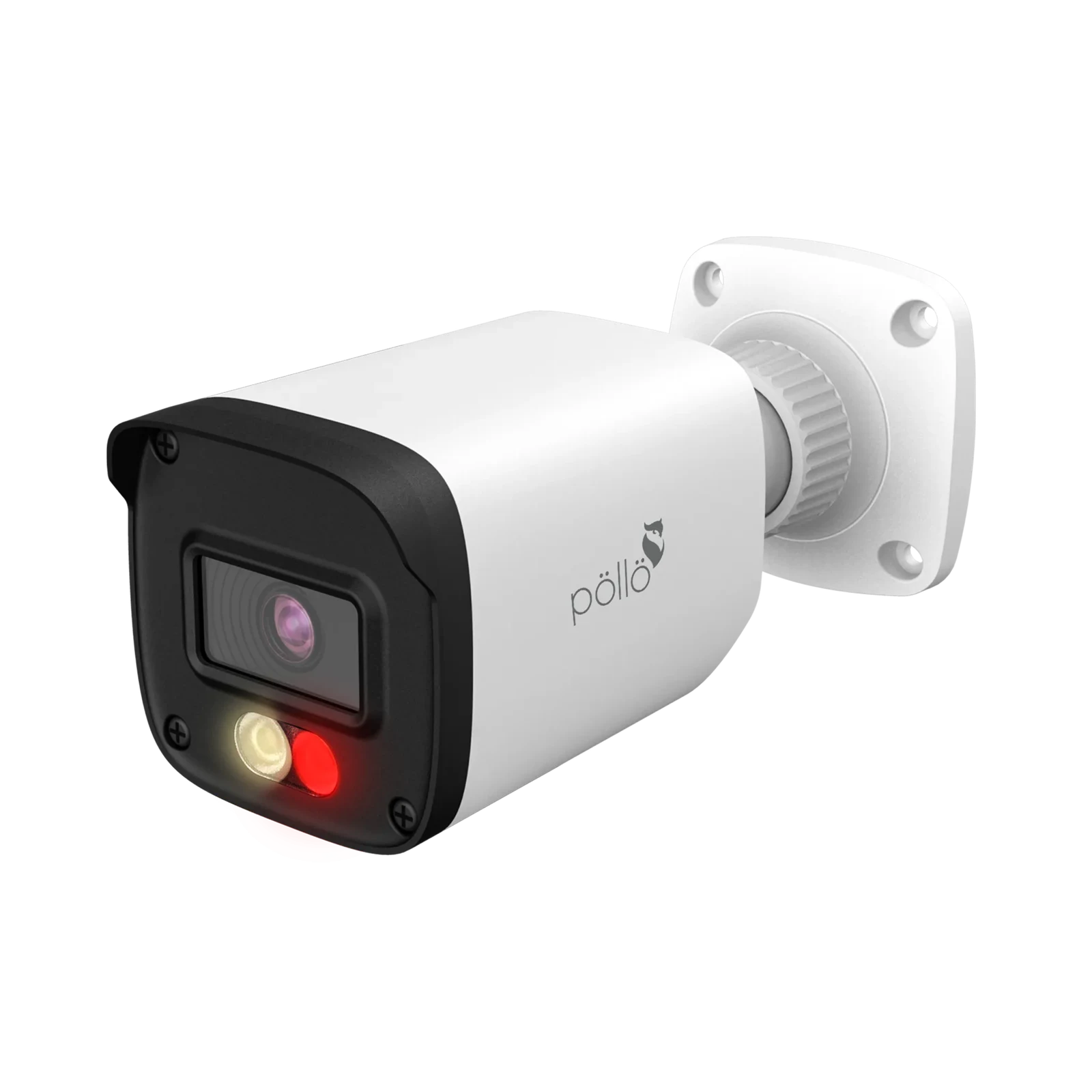

8 Megapixel Dual-Light Network Bullet Camera

Name: 8 Megapixel Dual-Light Network Bullet Camera
Brand: Pollo

1/2.8 " CMOS Image Sensor · 3840x2160 Pixels Super 4K Resolution · 0.02 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.8 " CMOS Image Sensor
• 3840x2160 Pixels Super 4K Resolution
• 0.02 Lux Min. Illumination for Day Time Color View
• 30-meter Dual Night View Range @ 0 Lux
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• Support SD Card up to 256GB
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes (IEEE802.3af)
ROI	8ROI, Each ROI to be configured separately
Lens	2.8mm@F1.6, Horizontal FoV: 106°; Vertical FoV:57°; Diagonal FoV:124°
Audio	1CH audio input; 1CH built-in MIC
Defog	Yes
Focus	Fixed
Model	PLC-428M-AU-DL3/PM
Reset	Yes
Weight	( net ) Approx. 0.42KG
Network	RJ45
Storage	Conditions - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Bit Rate	64 Kbps ~12Mbps
Iris Type	Fixed Iris
Digital NR	Yes
Dimensions	( mm ) 167.6 × 75 × 74.6
Image Size	3840×2160
Lens Mount	M12
Sub Stream	720P/D1/VGA/640×360/CIF/480× 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
Main Stream	60Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~30fps) 50Hz: 8MP(1~20fps)
Image Sensor	1 / 2.8 "CMOS
Installation	Ceiling mounting; wall mounting
Power Supply	DC12V/PoE
Video Output	No
Bit Rate Type	VBR / CBR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP,
Min. Illumination	0.02 lux @F1.6, AGC ON; 0 lux with illumination on
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream
Power Consumption	< 7W
Remote Monitoring	Web browser /PVMS Plus /Pollo Live Plus
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream:
Electronic Shutter	1 / 3s ~ 1 / 100000s
Ingress Protection	IP67
Interface Protocol	ONVIF
Wide Dynamic Range	120dB
H.265 Compression Standard	Main Profile@Leve4.1 High Tier
