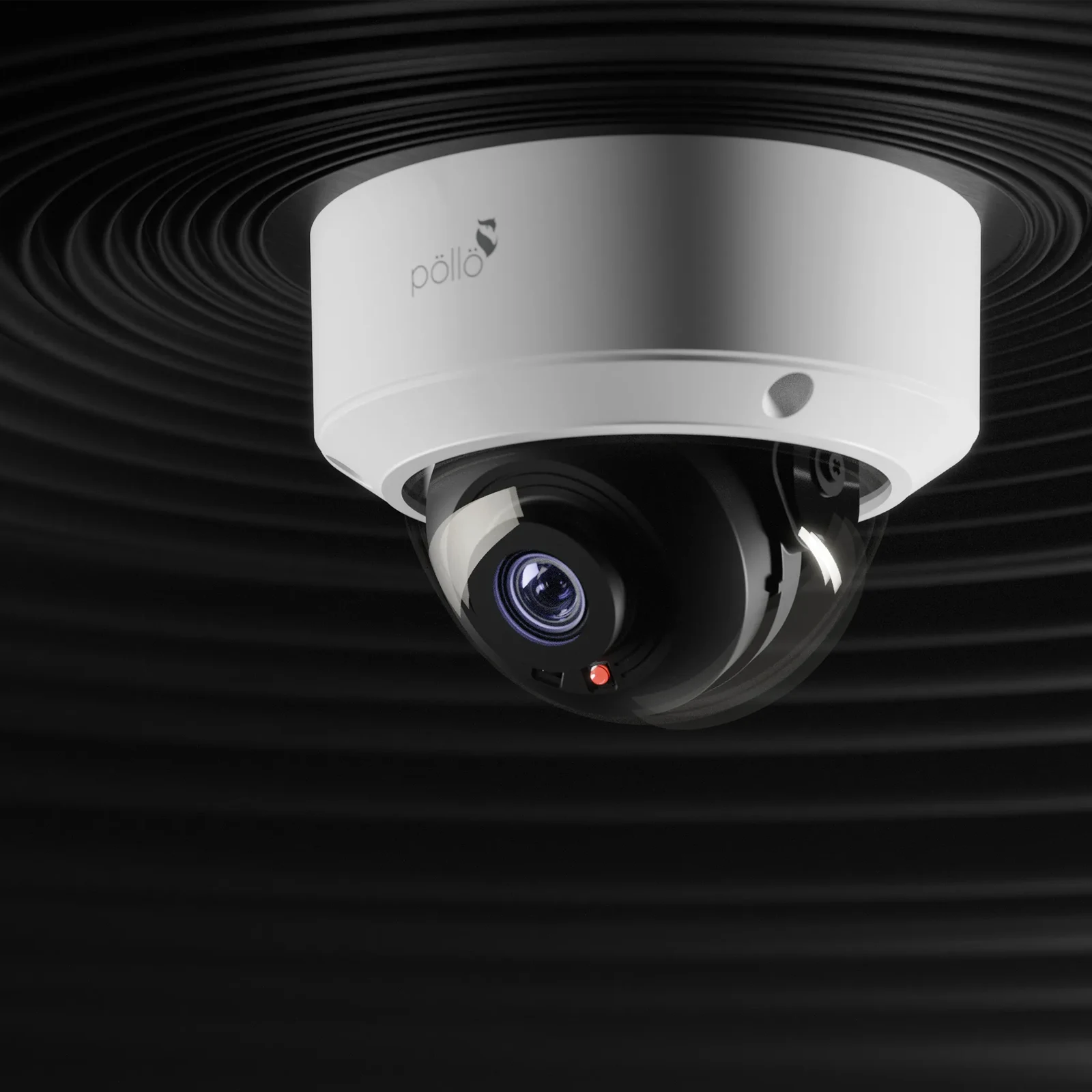

2 Megapixel Network Vandal Proof Dome Camera

Name: 2 Megapixel Network Vandal Proof Dome Camera
Brand: Pollo

1/2.8” CMOS Image Sensor · 1920 × 1080 Pixels Full HD Resolution · 0.008 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.8” CMOS Image Sensor
• 1920 × 1080 Pixels Full HD Resolution
• 0.008 Lux Min. Illumination for Day Time Color View
• 30-meter IR Night View Range @ 0 Lux
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IK10 Vandal Proofing
• IP67 Water & Dust Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply.

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes (IEEE802.3af)
ROI	Each ROI to be configured separately
Lens	2.8mm@F1.6, Horizontal FoV: 107°; Vertical FoV:56°; Diagonal FoV:126°
Audio	1CH audio input
Focus	Fixed
Model	PLC-432M-AUK-IR3/PM
Reset	No
Weight	( net ) Approx. 0.5KG
Network	RJ45
Storage	Environment - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Bit Rate	128 Kbps ~ 4 Mbps
Iris Type	Fixed Iris
Digital NR	Yes
Dimensions	( mm ) Ø 110× 83.3
Image Size	1920×1080
Lens Mount	M12
Resolution	1080P (1920 × 1080), 720P (1280 × 720), D1, CIF
Sub Stream	60Hz: D1/CIF (1~30fps);50Hz: D1/CIF (1~25fps)
IR Distance	20 ~ 30 m
Main Stream	60Hz: 1080P/720P(1~30fps); 50Hz: 1080P/720P(1~25fps)
Smart Alarm	Motion detection, SD card full, SD card error
Image Sensor	1 / 2.8 "CMOS
Installation	Ceiling mounting (Wall mounting available with the junction box and bracket)
Power Supply	DC12V/PoE
Video Output	No
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image
Angle Adjustment	Pan: 0°~355°; Tilt: 0°~70°; Rotation: 0°~355°
General Function	Watermark, IP address filtering, video mask, heartbeat, illegal login lock,
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x,
Min. Illumination	0.008 lux @F1.6, AGC ON; 0 lux with IR
Online Connection	Support simultaneous monitoring for up to 3 users; Support multi-stream real
Power Consumption	< 3.5W
Remote Monitoring	Web browser /PVMS Plus/Pollo Live Plus
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 /
Electronic Shutter	1/3s ~ 1 / 100000s
Ingress Protection	IP67&IK10
Interface Protocol	ONVIF
Wide Dynamic Range	Digital WDR
Operating Environment	- 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)
H.265 Compression Standard	Main Profile@Leve4.1 High Tier
