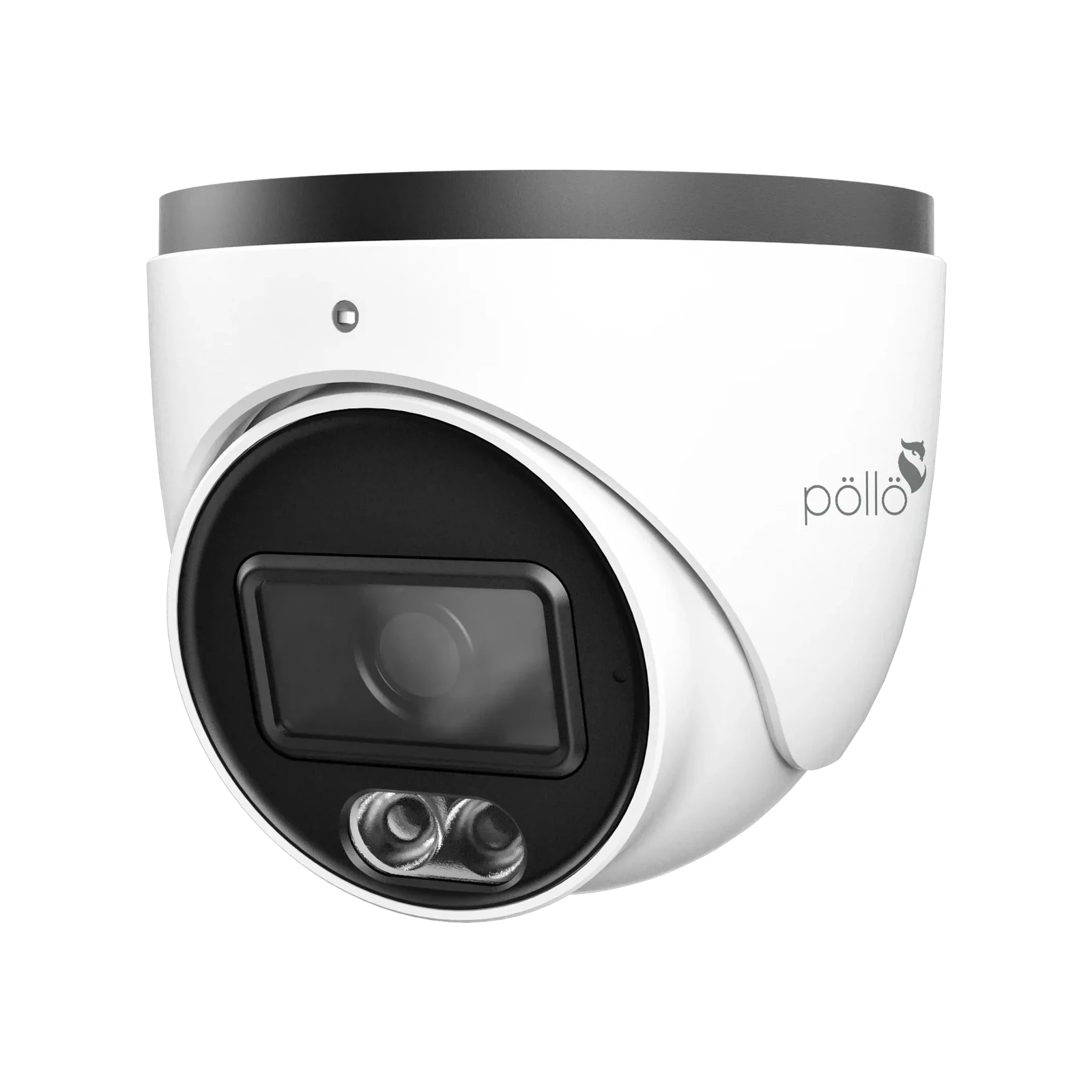

4 Megapixel Night Fighter AI Network Dome Camera

Name: 4 Megapixel Night Fighter AI Network Dome Camera
Brand: Pollo

1/2.9” CMOS Image Sensor · 2688 × 1520 Pixels 2K Resolution · 0.0005 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.9” CMOS Image Sensor
• 2688 × 1520 Pixels 2K Resolution
• 0.0005 Lux Min. Illumination for Day Time Color View
• 30-meter Full Colour View Range
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• PoE (IEEE802.3af)

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes , IEEE802.3af
ROI	Each ROI to be configured separately
Lens	2.8 mm@F1.0, H.FoV: 99°; V.FoV:53°; D.FoV: 119°
Audio	1CH audio input; 1CH built-in microphone
Defog	Yes
Focus	Fixed
Model	PLC-434M-AU-PV3/PM
Reset	Yes
Weight	( net ) Approx. 0.40KG
Network	disconnection
Storage	Conditions - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Bit Rate	32 Kbps ~8 Mbps
Iris Type	Fixed Iris
Digital NR	3D DNR
Dimensions	( mm ) 167.6 × 75 ×74.6
Image Size	2688 × 1520
Lens Mount	M12
Sub Stream	720P/D1/640 ×360/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps
Smart Alarm	Motion detection, SMD, SD card error, SD card full, IP address conflict,
Image Sensor	1 / 2.9 "CMOS
Installation	Ceiling mounting; Wall mounting
Power Supply	DC12V/PoE
Video Output	No
Bit Rate Type	VBR / CBR
Image Settings	VBR / CBR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
General Function	Watermark, video mask, heartbeat, image distortion correction,
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS,
Min. Illumination	0.0005 lux F1.0, AGC ON; 0 lux with illumination on
Online Connection	Support simultaneous monitoring for up to 10 users;
Power Consumption	< 7W
Remote Monitoring	Web Client/POLLO NVR/PVMS Plus /mobile APP
Video Compression	Mainstream: H.265+/ H.265 / H.264+ / H.264 Sub stream/Third stream:
Electronic Shutter	Auto or manual mode; manual mode: 1 / 3s ~ 1 / 100000 s
Ingress Protection	IP 67
Interface Protocol	ONVIF
Wide Dynamic Range	120dB
