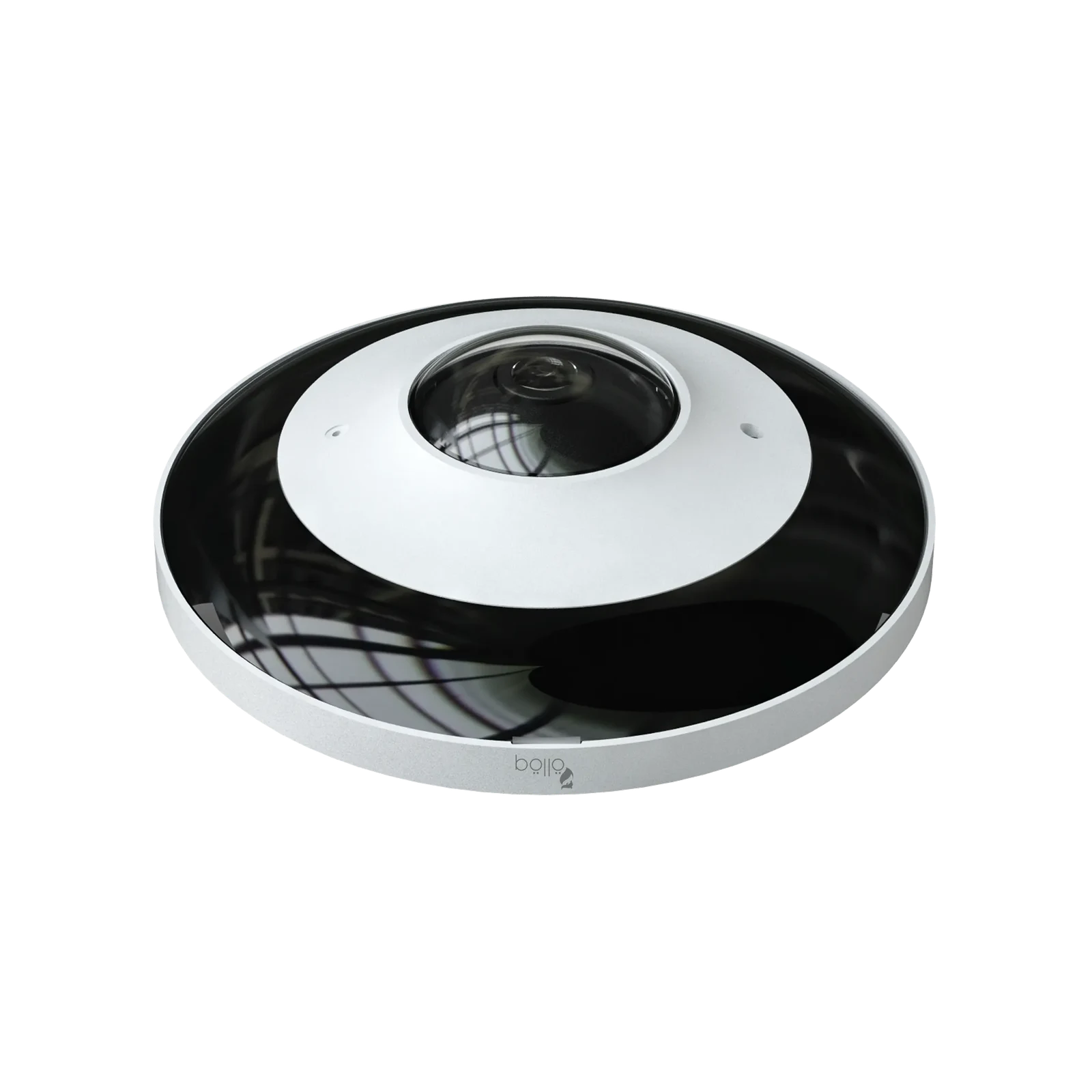

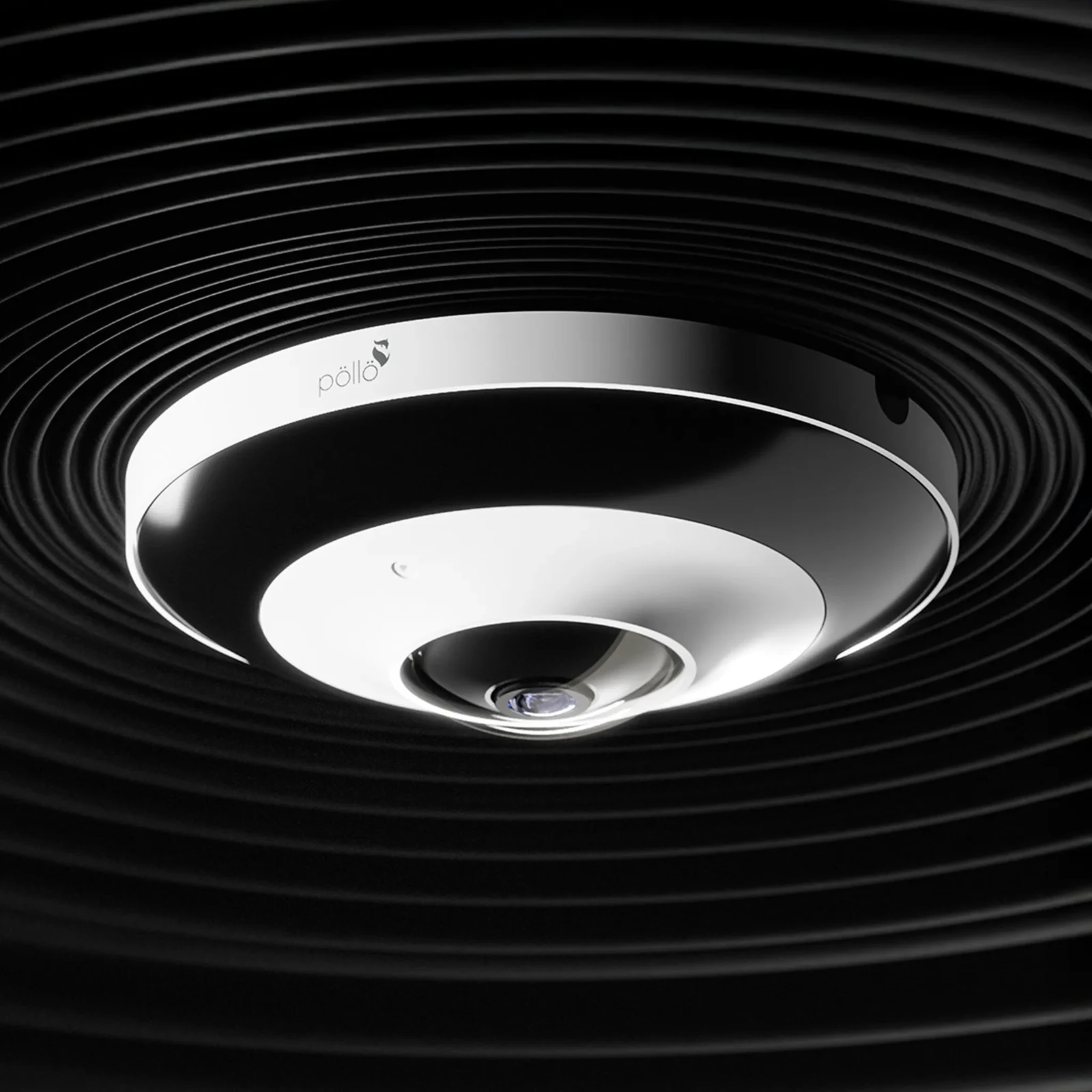

6 Megapixel Fisheye Network Camera

Name: 6 Megapixel Fisheye Network Camera
Brand: Pollo

1/2.5” CMOS Image Sensor · 3200×1800 Pixels (3K) Resolution · 0.01 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.5” CMOS Image Sensor
• 3200×1800 Pixels (3K) Resolution
• 0.01 Lux Min. Illumination for Day Time Color View
• 30-meter IR Night View Range
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• PoE (IEEE802.3af)

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes, IEEE802.3af
ROI	8 ROI, each ROI to be configured separately
Lens	1.65mm @F2.0, horizontal field of view : 180°(wall mounting), 360°(ceiling
Audio	2CH Built-in MIC, 1 CH audio input, 1CH audio output
Defog	Yes
Model	PLC-486M-AU-IR3/PM
Reset	Yes
Network	1 CH RJ45 10 M/100 M self-adaptive Ethernet port
Storage	Environment -30℃ to 65 ℃ (-22°F to 149 °F). Humidity 95% or less (non-condensing)
Bit Rate	64Kbps ~ 10Mbps
Digital NR	3D NR
IR Distance	20-30m
Smart Alarm	Motion detection, sensor alarm, SD card error, SD card full, IP address
Image Sensor	1/2.5" Progressive Scan CMOS
Installation	Wall mounting, ceiling mounting, desktop
Power Supply	DC12V/PoE
Video Output	CVBS (BNC × 1)
Weight (net)	Approx. 516.2g
Bit Rate Type	VBR/CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, SNMP, PPPoE, DDNS,
Min. Illumination	0.01 lux@F2.0, AGC ON; 0 lux with IR
Online Connection	Support simultaneous monitoring for up to 6 users; Support multi-stream real
Power Consumption	<10W
Remote Monitoring	Web Browser/PVMS Plus/NVR/mobile APP
Video Compression	Main stream: H.265+ / H.265/ H.264+ / H.264 Sub stream: H.265+ / H.265/
Electronic Shutter	1/3s ~ 1/100000s
Ingress Protection	IP67
Interface Protocol	ONVIF Profile S/G/M
