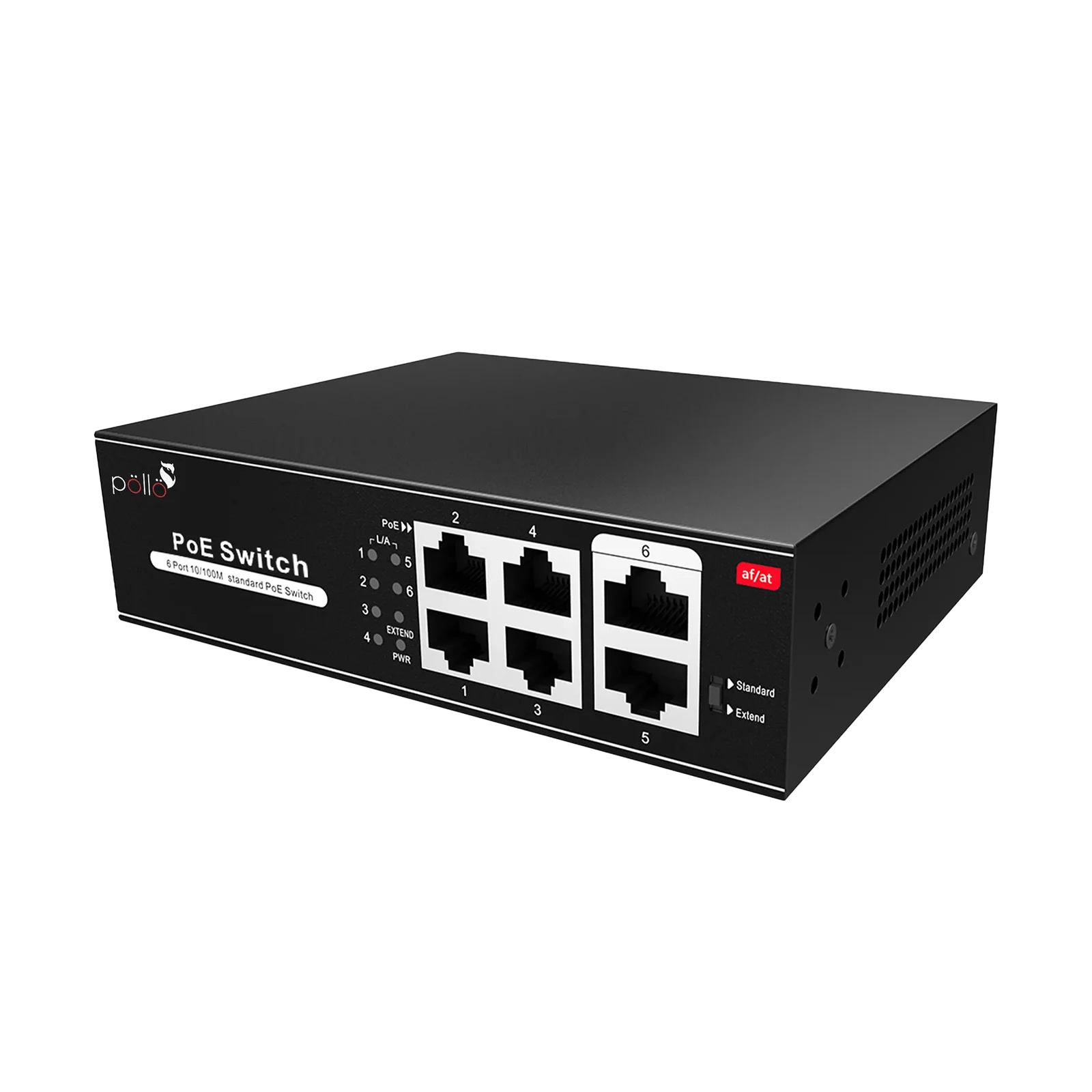

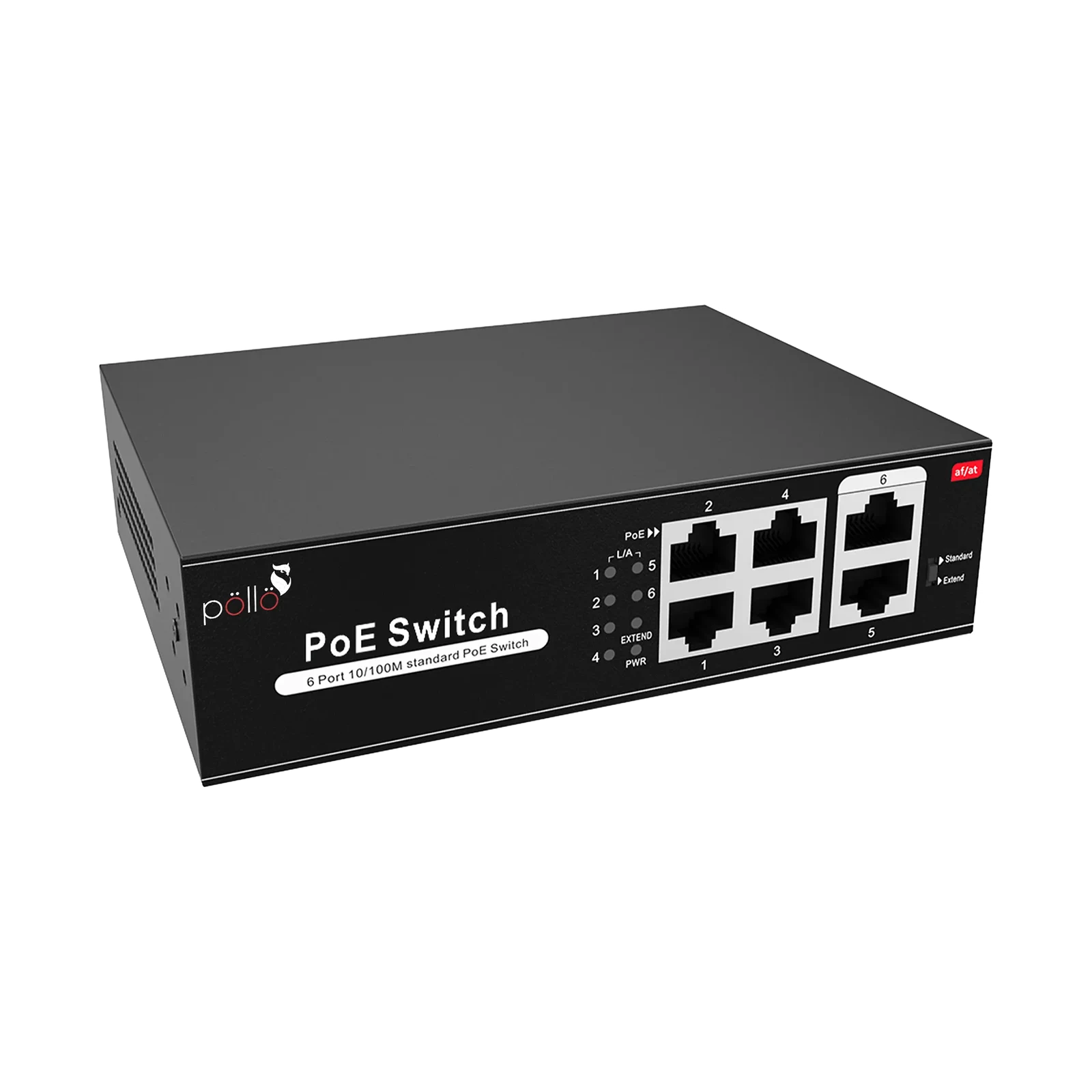

6-Port Megabit PoE Network Switch

• 4 × 10/100 Mbps PoE ports for data and power
• 2 × 10/100 Mbps uplink RJ45 ports
• Ports 1–6 support auto-detection and MDI/MDI-X auto-sensing
• Supports full and half-duplex transmission
• Extender + CCTV functional switch (restart required after switching)
• Extended transmission up to 250 m on 10BASE-TX
• Standard transmission up to 100 m on 100BASE-TX
• Compliant with IEEE 802.3, 802.3u, and 802.3x standards
• Store-and-forward forwarding mode
• 1.6 Gbps non-blocking switching capacity
• Forwarding rate up to 0.98 Mpps
• 1K MAC address table
• 768 KB buffer memory
• IEEE 802.3af/at PoE support on ports 1–4
• Up to 30 W PoE power per port
• Total PoE power budget of 65 W

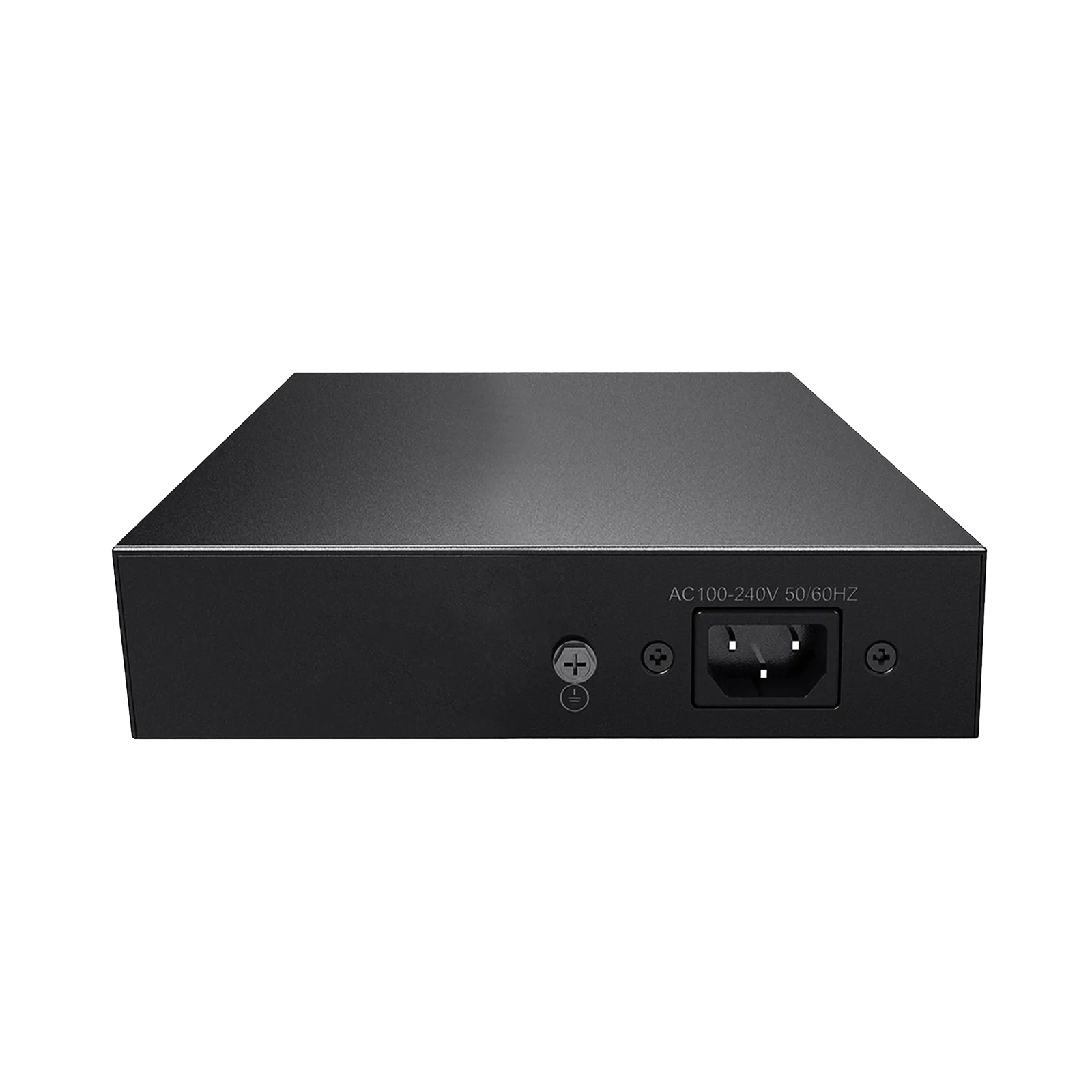

• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption (<3 W standby)
• LED indicators for power, network, PoE, and extend mode
